- RANGER AR-3500 -
Got two of these fine radios ower the years (1990-1999) - This is about as good as it gets! I made some mods to my second radio,- thay are described on this page. Worked thousend's of QSO on the FreeBand with this one togheter with the 'Zetagi B2002' Linear amplifier and a homebuilt 'LogoStar' 6 element logperiodic antenna

Next FreeBand radio was an 'UNIDEN HR-2510' - Also got my first Ham-Rig 'Kenwood TS-520S' at the same time.




- MODIFICATIONS and Documentation -
  • HOW-TO Enter 24.900MHz scanning program on the RANGER AR-3500 (in .txt format smal file)
  • HOW-TO add Memory Backup battery inside the AR-3500 radio
  • HOW-TO disable key-beep on the AR-3500 Radio.
  • AR-3500 User manual (in .pdf format 2.9Mb file)

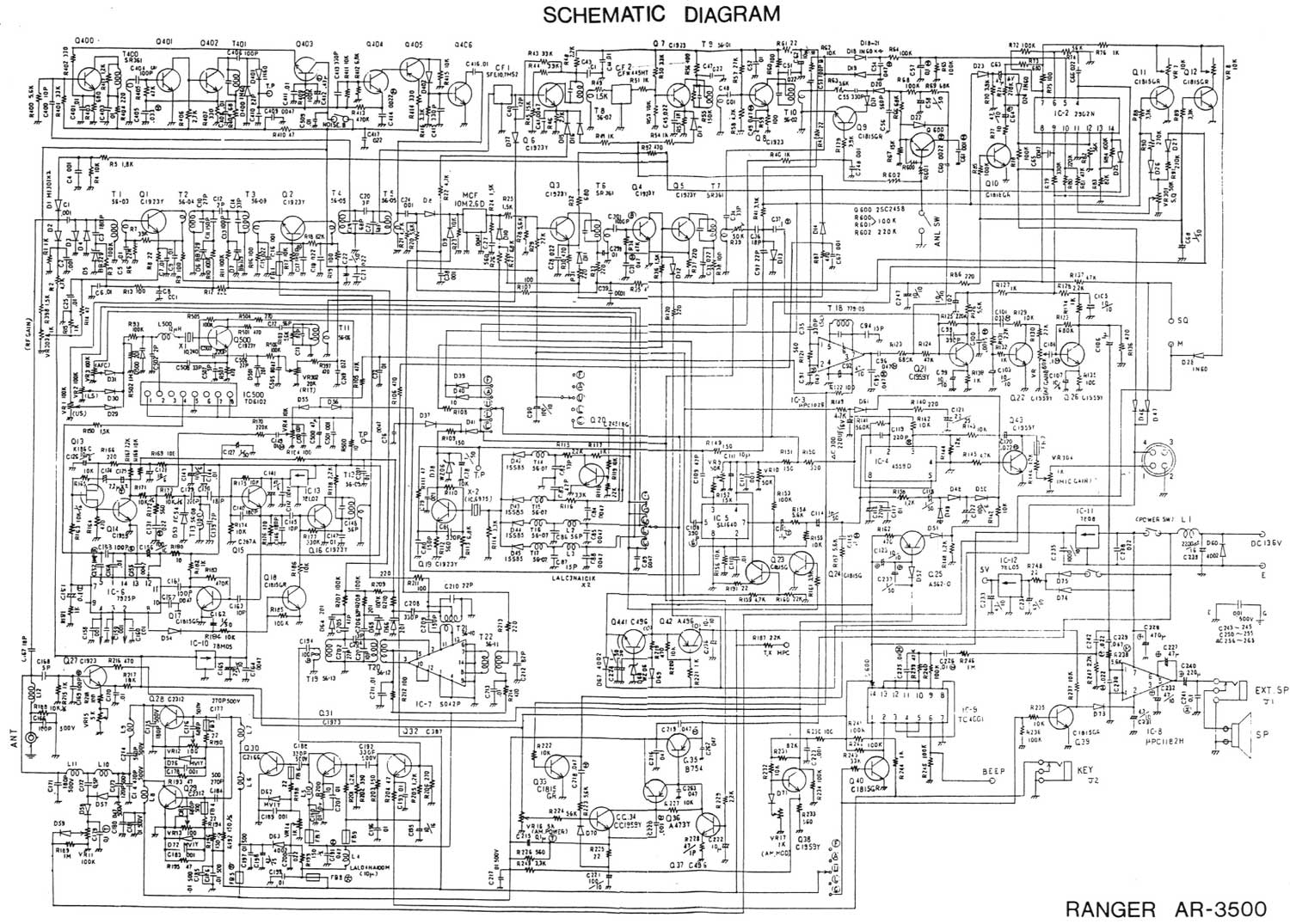

  • AR-3500 Schematic diagram/Circuit drawing (in .jpg format 290Kb file)

    - Technical data -
    FACTORY SPECIFICATIONS
========================================
Transmitter:
Frequency coverage..26--30Mhz
Output power........25W SSB PEP - 30W CW - 8W AM/FM

Receiver:
Frequency coverage..0.1--30Mhz
Sensitivity(Preamp).Less than 0.3uV/10dB S/N
                    (Within range 26-30Mhz SSB Mode)
General:
Dimensions..........(W)(H)(D)mm
Weight..............Kg
Microphone..........Original Handheld

Manufactory.........CCC Clear Channel Corporation
