- HOW-TO disable key-beep on the AR-3500 Radio. -




- Procedure -
  1. Remove cover (bottom side / speaker side)

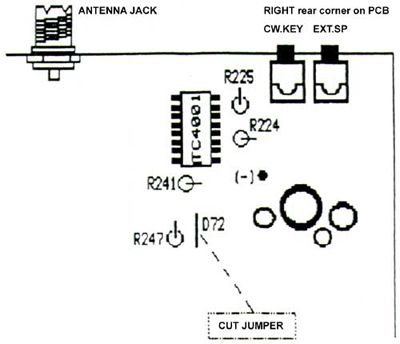

  2. Locate and Cut the wire-jumper at the position 'D72' on the main circuit board,- the key-beep is hereby disabled.
  3. ReFit bottom cover. Operate the Radio as usual.
No additional adjustments needed!!
