UNIDEN HR2510 / UNIDEN 2830 / President LINCOLN
Used this radio and a couple of other 'President Lincoln' in the years 1997-2002. This 'President' comes in some different models,- I used them al, the 'Lincoln', The Uniden 2830 and the 'HR2510' - At one time i owned two 'HR2510' at the same time!. On this page i describe som great mods i made to the radio, most for fun, but some is also verry useful. In al those years i had no problems with any of these radios (Total of 4 different radios).

This is my 'Last' FreeBand radio,- from this one i only used 'Ham-Radios' - My FreeBand days ended in 2003 when i finaly got my Ham-Ticket and got my license as SM2YER.

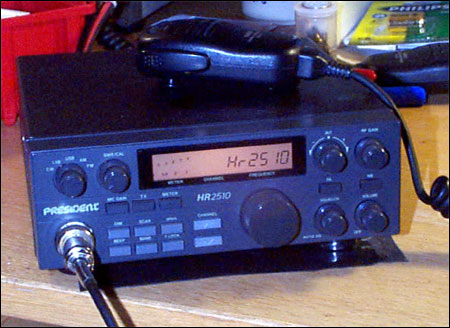

HR2510 - Running with 'CHIPSWITCH' Welcome message.

- MODIFICATIONS and Documentation -

Output modification Replacing Final and drive Transistor, Using Motorola MRF455 /NTE340.

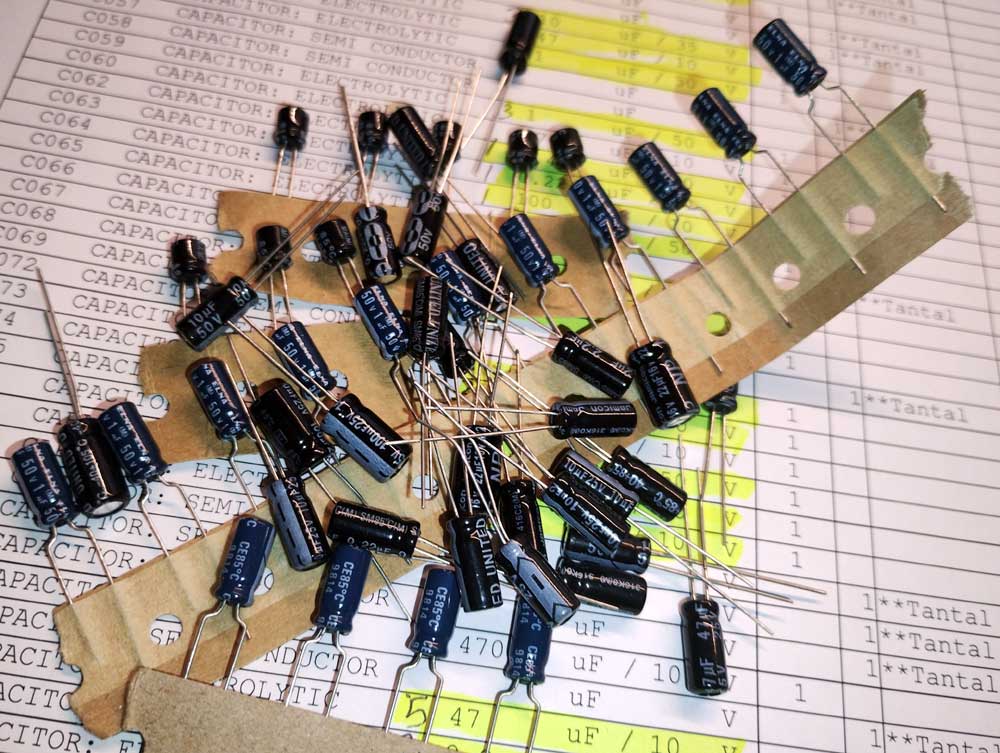

Improved reception (RX) Lower Noise levels and higher gain. (in 74Kb large .pdf file)

The 'Ultimate' modification Using The 'CHIPSWITCH™' processor replacement.

Using an external DSP Hookup with HR2510

HR2510 Operation manual (in 3.9Mb large .pdf file)

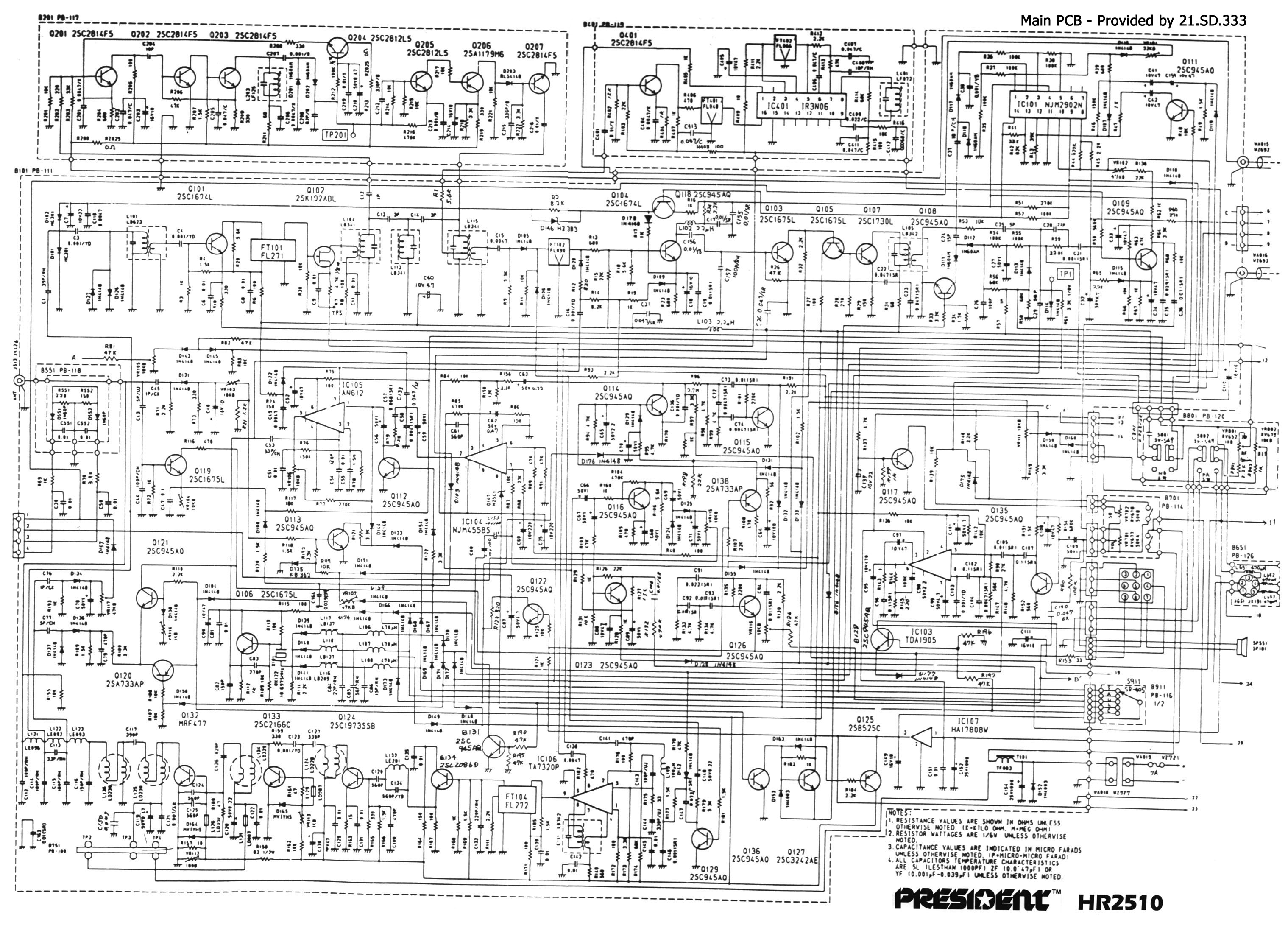

Main board Circuit drawing (in 1Mb large .jpg file)

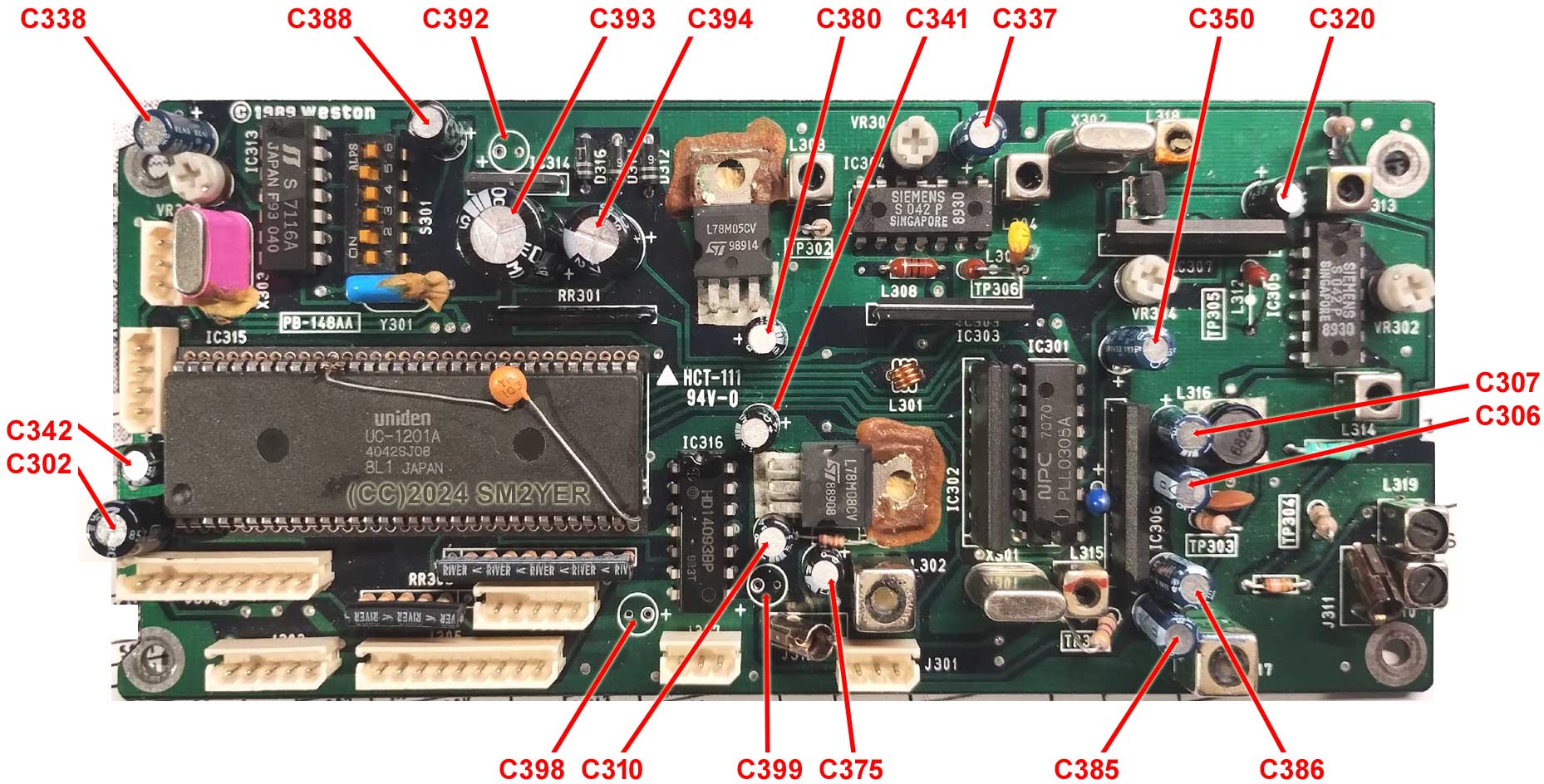

CPU-Board Circuit drawing (in 888Kb large .jpg file)

CHIPSWITCH™ Operator's Manual (in 6.3Mb large .pdf file)

CHIPSWITCH™ Hardware Installation guide (in 5.2Mb large .pdf file)

CHIPSWITCH™
Is the trademark for the Chipswitch company
4773 Sonoma Hwy, Suite 132, Santa Rosa, California 95409-4269 U.S.A.
http://www.chipswitch.com

- Technical data -

FACTORY SPECIFICATIONS
========================================
Transmitter:
Frequency coverage..26--30Mhz (With modification)
Output power........25W SSB/CW - 10W AM/FM

Receiver:
Frequency coverage..26--30Mhz (With modification)
Sensitivity(Preamp).Less than 0.3uV/10dB S/N

General:
Dimensions..........(W)(H)(D)mm
Weight..............Kg

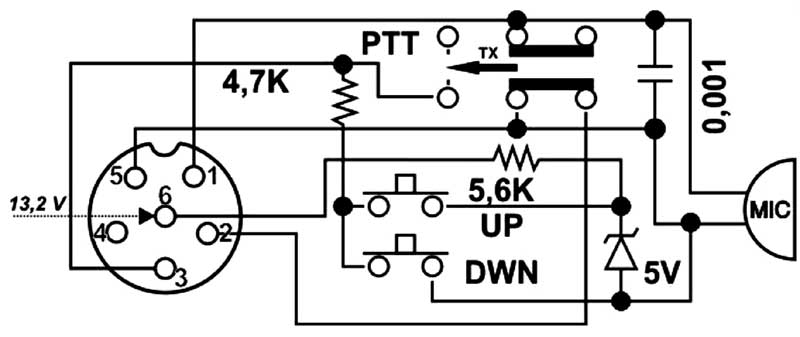

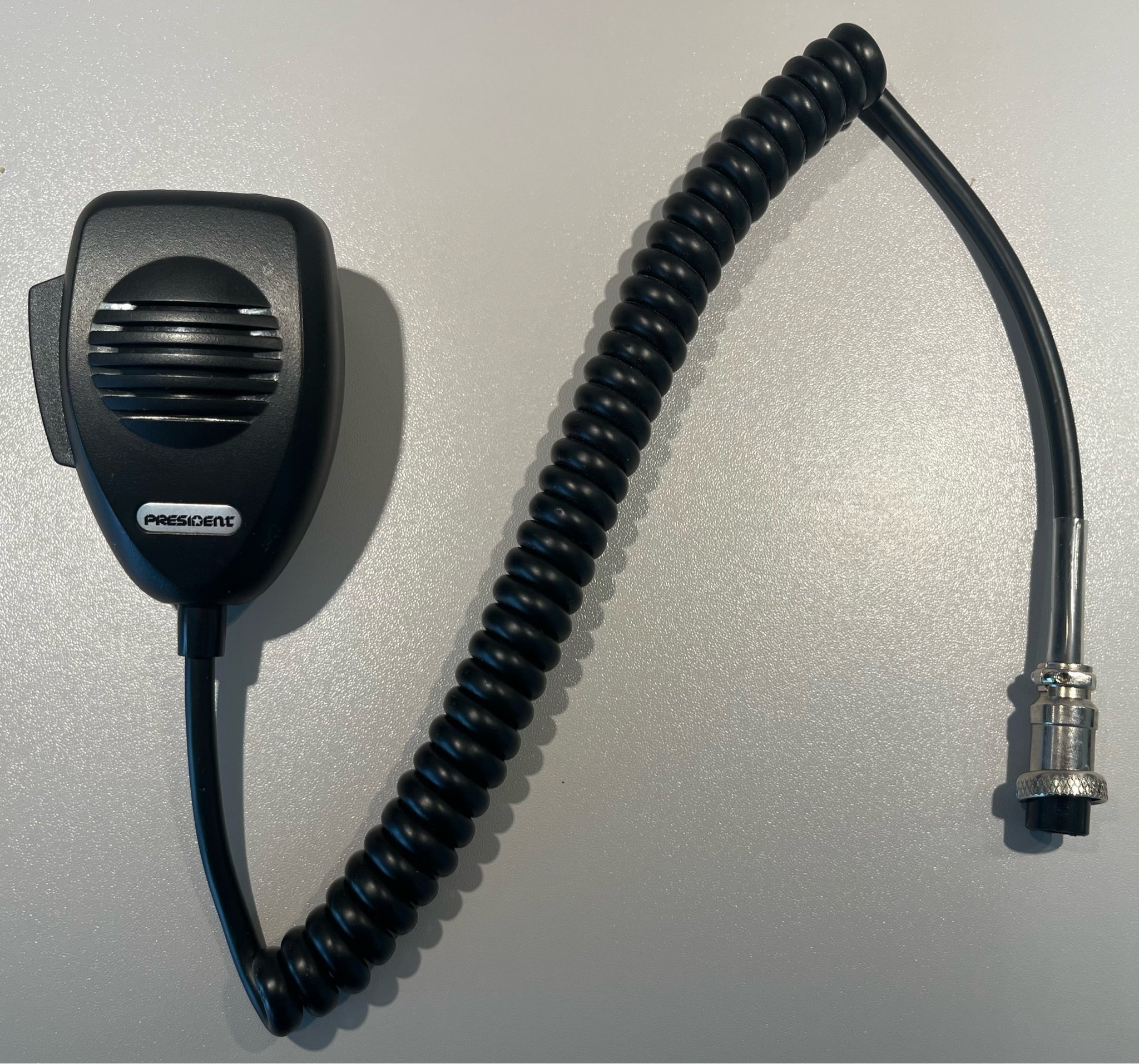

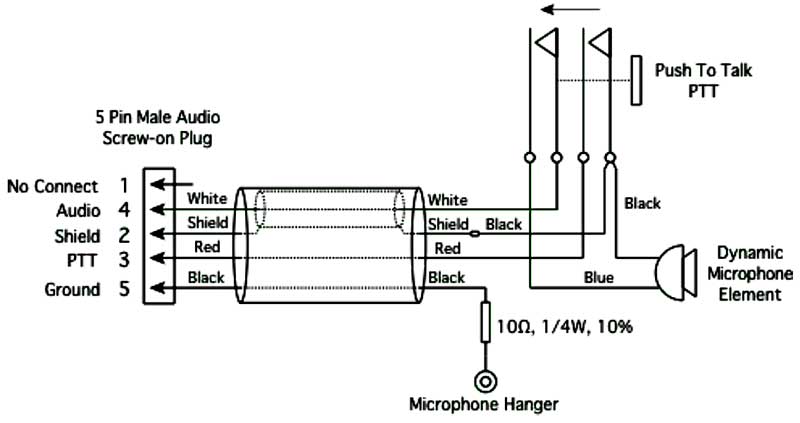

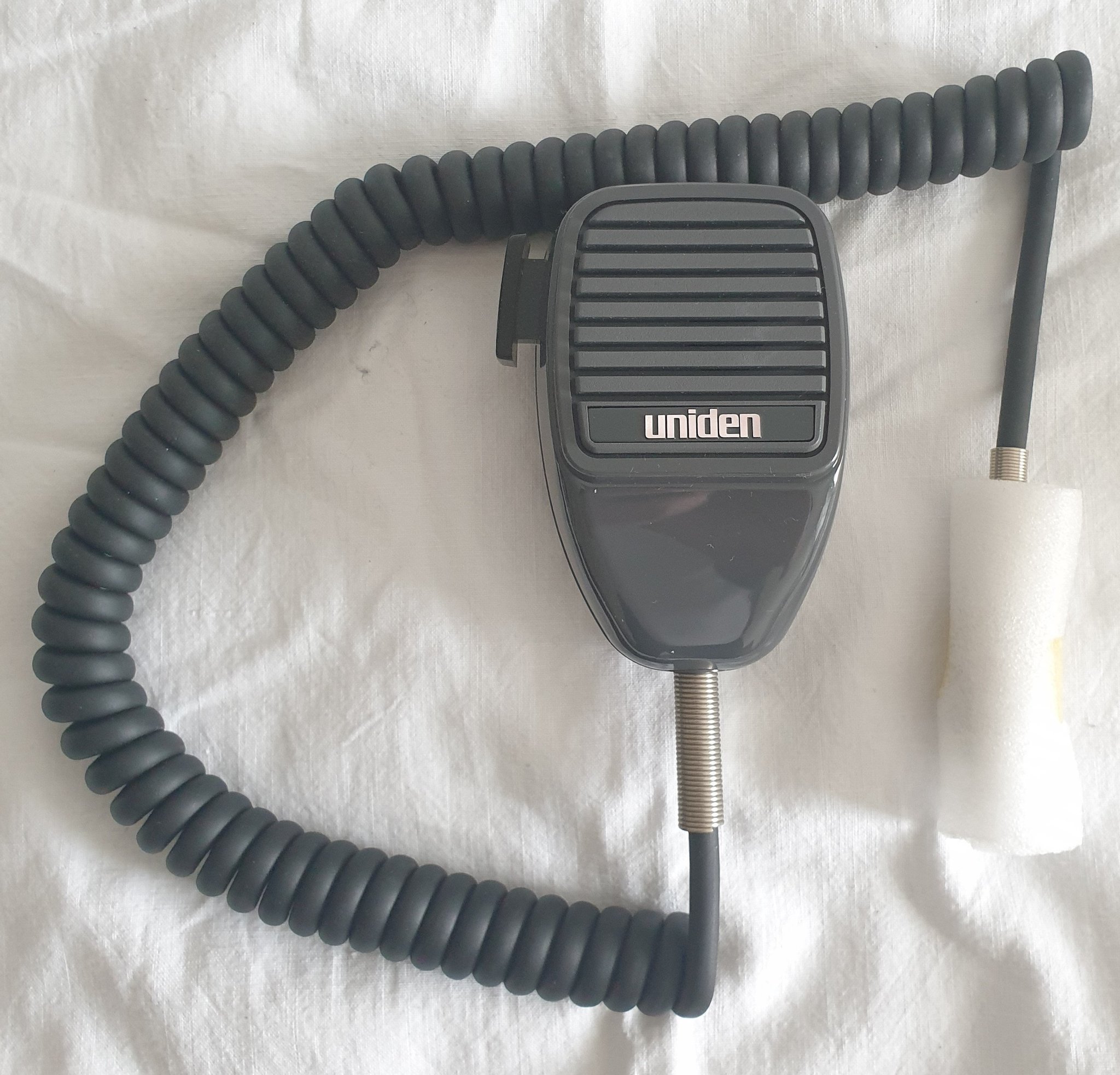

Microphone..........Original Handheld

Manufactory.........UNIDEN AMERICA CORPORATION
