- Linear Amplifier ZETAGI B2002
HF-Slutsteg (27MHz) / 4x MRF422 RF POWER Transistorer i utgången / Uteffekt > 1KW PEP/SSB / Körde väldigt mycket med detta steg (ca: 999-2003) / Lite tveksam kvalite men roligt att 'kräma på' med!

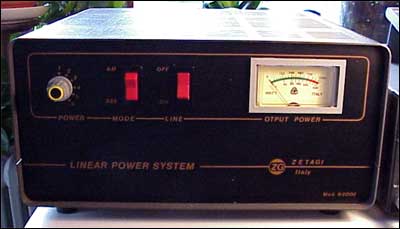

ZETAGI B2002


Working 'FreeBand' in 2001 with FT1000MP and the B2002 amplifier

- Documentation -

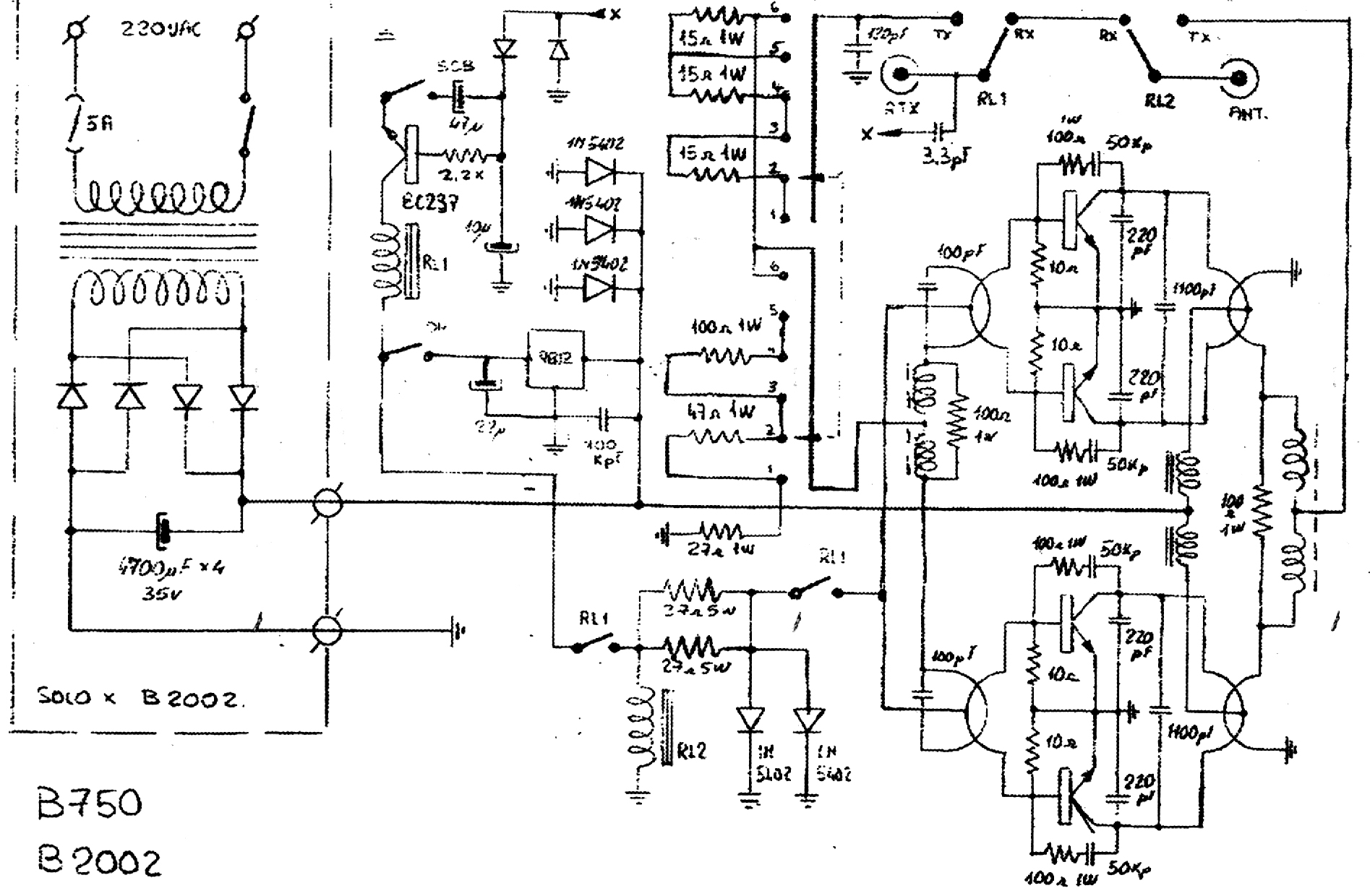

  • Circuit drawing (In 672Kb Large .jpg image file)
  • Some More images... (Modified unit)
  • User manual (In 1,3Mb Large .pdf file)
  • MRF422 datasheet (In 657Kb Large .pdf file)

    - Technical data -

    FACTORY SPECIFICATIONS
========================================
Frequency Range....20--30Mhz
Impedance..........50ohm
Power supply.......230VAC 50Hz
Input power........1-10W AM / 1-20W SSB
Outpot power.......600W AM / 1200W SSB
Dimensions.........310x310x150mm
Weight.............16Kg

Output tuning is not required
Lighted output power meter.
Six levels adjustable output power

Manufactory........ZETAGI S.p.A
                   Via Ozanam 29
                   20049 Concorezzo (MI)
                   http://www.magnos.it/zetagi/zeta.htm
