- HOW-TO add Memory Backup battery inside the AR-3500 radio -





- Procedure -

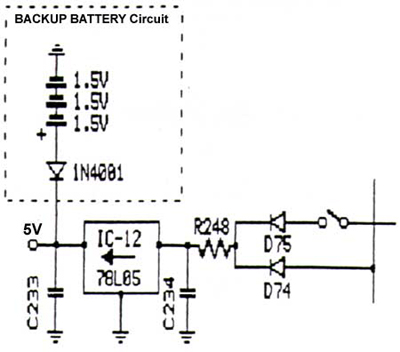

  1. Make backup battery circuit out of (a)Tree in line 1.5Volt standard cells,- or (b)Single 4.7/5Volt Lithium cell
  2. Remove cover (bottom side / speaker side)

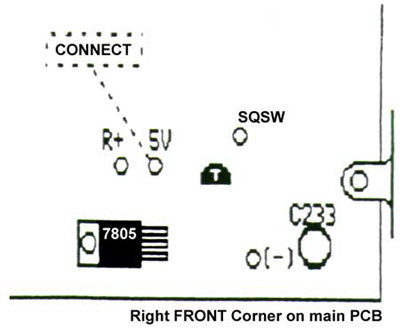

  3. Locate connection at the position '5V' on the main circuit board,- Connect the Backup-battery package via the 1N4001 Diode
  4. Place Backup-battery package in sutable non-conducting cower inside the radio, Attach battery-pack to in sutable position.
  5. ReFit bottom cover. Operate the Radio as usual.
No additional adjustments needed!!
