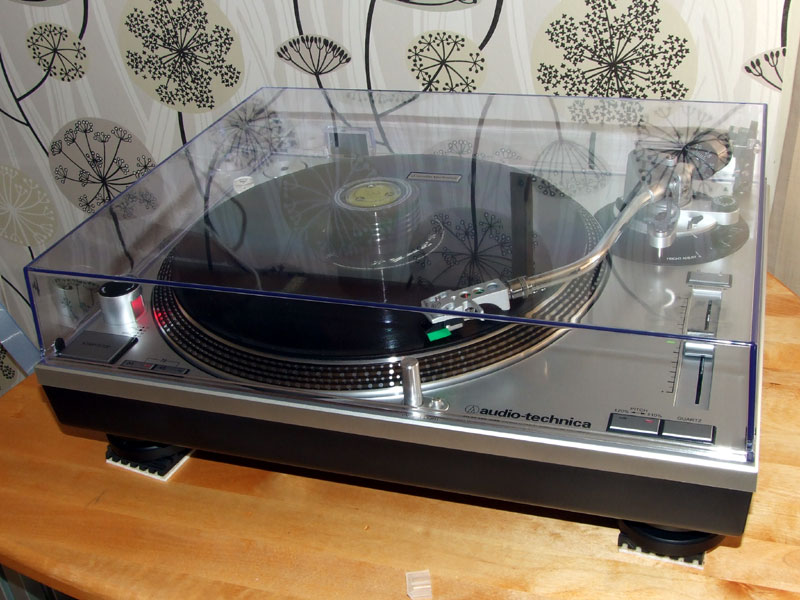

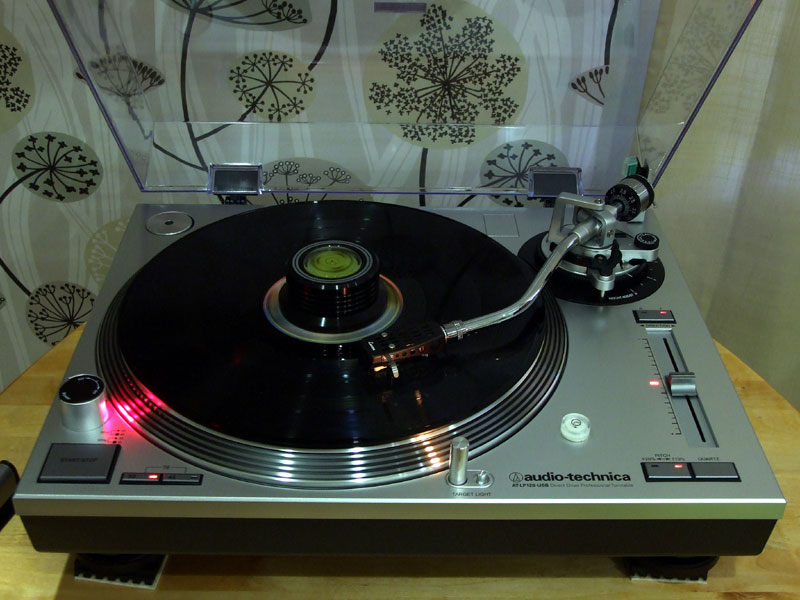

Tekniska data AUDIO-TECHNICA AT-LP120-USB
=====================================================================
Typ .................................... Skivspelare
3-Speed, manual operation
Motor .................................. DC motor
Drive method ........................... Direct drive
Speeds ................................. 33-1/3 RPM, 45 RPM, 78 RPM
Pitch variation ........................ +/- 10% or +/- 20%

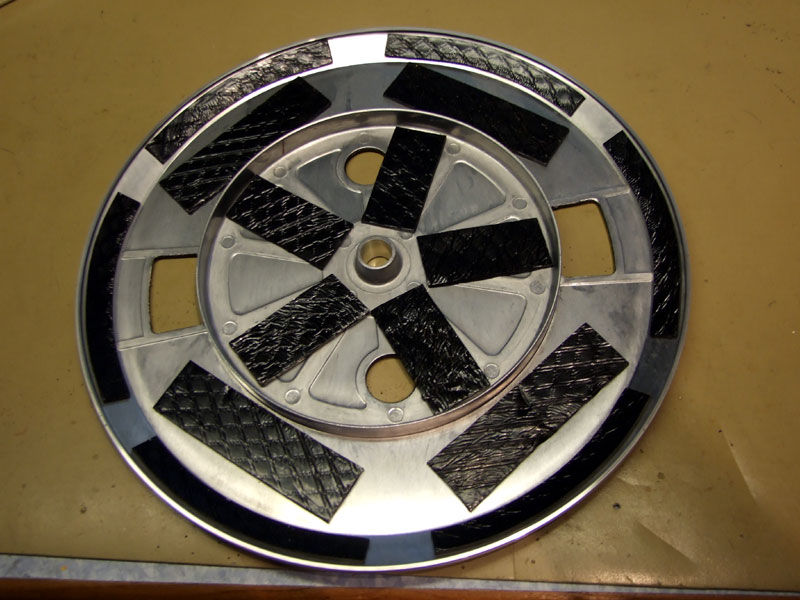

Turntable platter ...................... Die-cast aluminum
Starting torque ........................ >1.6 kgf.cm
Braking system ......................... Electronic brake
Wow and flutter ........................ < 0.2% WRMS (33 RPM)
Signal-to-noise ratio .................. > 50 dB
Output level / Pre-amp “PHONO” ......... 2.5 mV nominal at 1 kHz, 5 cm/sec
/ Pre-amp “LINE” .......... 150 mV nominal at 1 kHz, 5 cm/sec
Phono pre-amp gain ..................... 36 dB nominal, RIAA equalized
USB function ........................... A/D, D/A - 16 bit 44.1 kHz or 48 kHz
Computer interface ..................... USB 1.1 XP, Vista or MAC OSX
Power supply ........................... 115/230V AC, 60/50 Hz
requirements
Power consumption ...................... 11W
Dimensions ............................. 450.0 mm (17.72") W x 352.0 mm
(13.86") D x 157.0 mm (6.1") H
Weight ................................. 10.7 kg (23.5 lbs.)

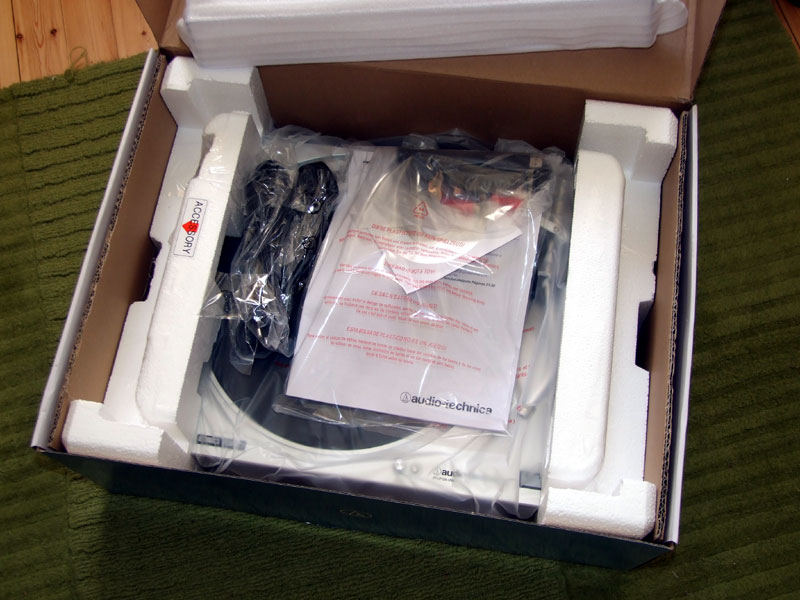

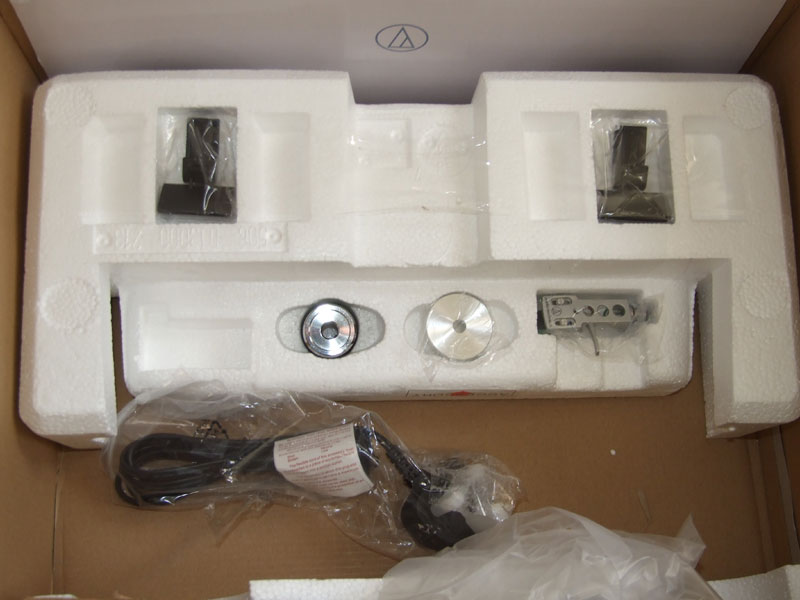

Accessories included
Headshell/cartridge (AT95E); AC line cord;
dual RCA (female) to 3.5 mm (1/8") mini-plug (male) stereo adapter cable; dual
RCA (female) to 3.5 mm (1/8") mini-plug (female) stereo adapter cable; 45 RPM
adapter; USB cable; recording software
Tekniska data Cartridge Specifications (AT95E)
=====================================================================
Frequency response ..................... 20 – 20,000 Hz
Channel separation ..................... >20 dB at 1 kHz
Vertical tracking force ................ 1.5 – 2.5 grams
Stylus construction .................... Bonded round shank
Output ................................. 3.5 mV at 1 kHz, 5 cm/sec
Channel balance ........................ 2.0 dB
Stylus shape ........................... 0.4 x 0.7 mil elliptical
Cantilever ............................. Aluminum
Mount .................................. Half-inch
Replacement stylus ..................... ATN95E
=====================================================================
|
