- The 'Ultimate' modification -
Using The 'CHIPSWITCH™' processor replacement

CHIPSWITCH™ Is the trademark for the Chipswitch company 4773 Sonoma Hwy, Suite 132, Santa Rosa, California 95409-4269 U.S.A. http://www.chipswitch.com

- 'CHIPSWITCH' Features -
With the CHIPSWITCH Modification for the HR2510 you get about 40 new programmable Features in the radio,- this is the most important.

CHIPSWITCH FACTORY SPECIFICATIONS
========================================
   Extended Frequency range 24.800-29.999Mhz
   Memory Channels 3 x 10
   Programmable Scan / Seek Function
   Programmable Channel Up / Down Buttons
   Programmable Microphone Buttons
   Programmable Transmitter Timeout
   Programmable Transmit Freq. Range
   Split Frequency Operation
   Programmable Priority Channel
   100KHz SPAN Step range
   SPAN Step range controle by Microphone Buttons

- 'CHIPSWITCH' Upgrade kit -
The upgrade processor-chip is delivered in a protective box,- along with the operator's Manual and complete instructions for the installation. DO NOT REMOVE THE PROCESSOR-CHIP FROM IT'S PROTECTIVE BOX UNTIL IT'S NEEDED The total impact is that this is a verry Professional product,- The installation guide cover everything that might be needed to know about the replacement procedure. My Processor-chip is quite old,- it has been 'in stock' at a radio-shop since 1993,- so you should also get the latest information directly from the manufactures web-site at http://www.chipswitch.com

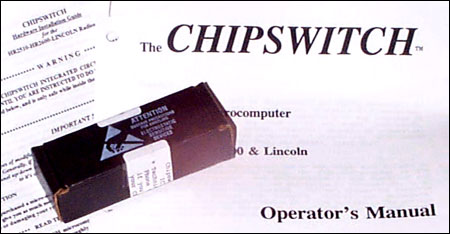

Complete 'CHIPSWITCH' Upgrade kit

- Replacement Procedure -
In order to get a good result,- you need to read and understand the 'CHIPSWITCH Hardware Installation Guide'

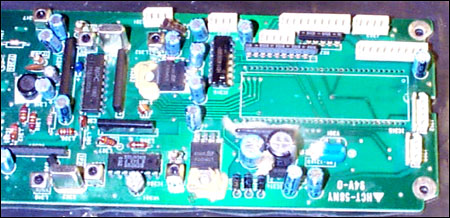

CPU-PCB with original Uniden-CPU Removed


CPU-PCB with 68-pin socket installed

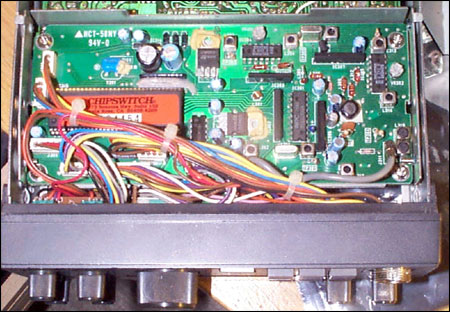

HR2510 Radio with CPU-PCB in place with CHIPSWITCH Processor installed


HR2510 - Running with 'CHIPSWITCH' Welcome message.

---
