- Tranceiver ICOM IC-756 PRO III -

2008.01.21 The rig is SOLD! - Due to lack of interest at present time.

- Bilder -

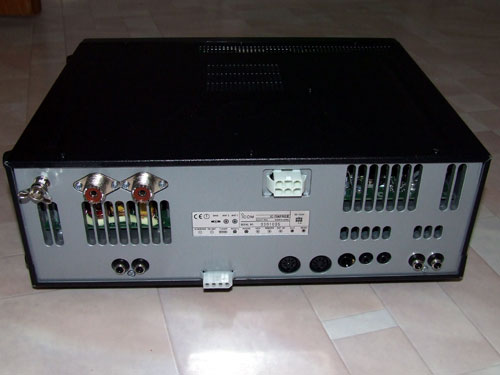

Tranceiver IC-756pro3 / Baksida

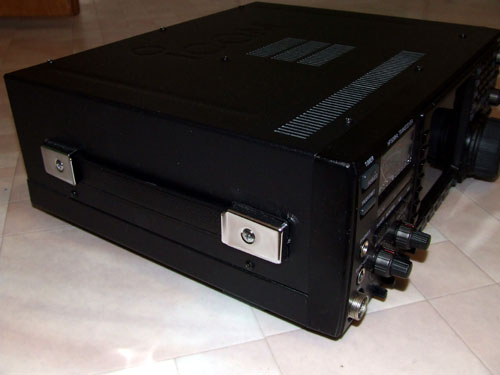

Tranceiver IC-756pro3 / Vänster sida

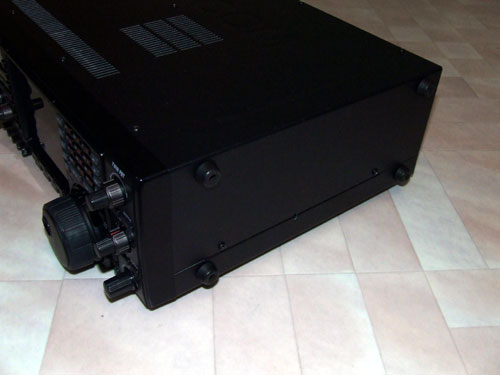

Tranceiver IC-756pro3 / Höger sida

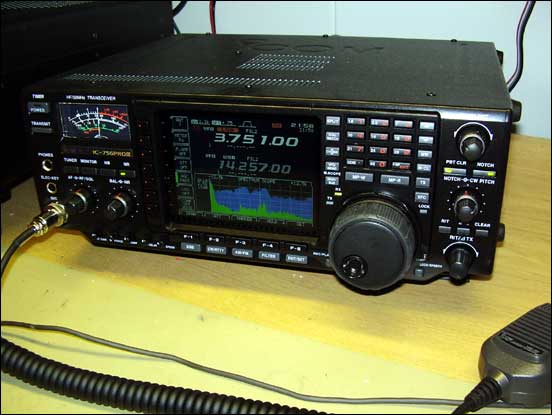

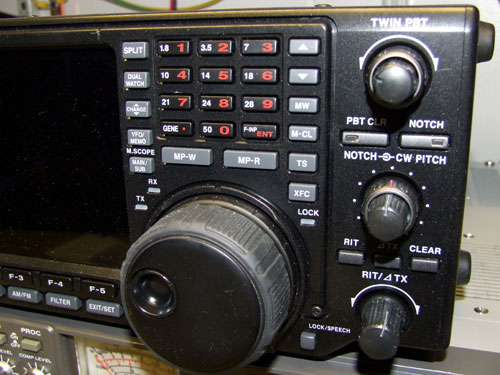

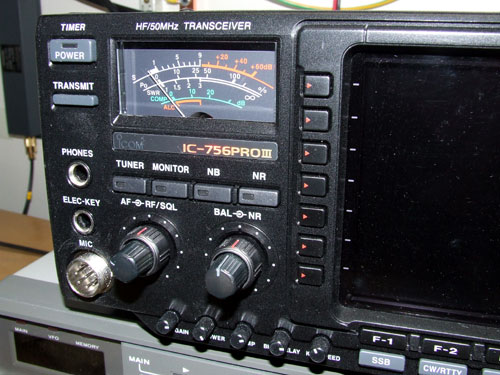

Tranceiver IC-756pro3 / Närbild front (Lite dammig!)


Tranceiver IC-756pro3 / Närbild front (Lite dammig!)

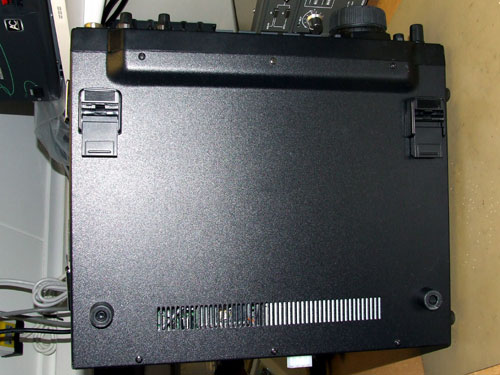

Tranceiver IC-756pro3 / Undersida

Högtalare ICOM SP-23 SÅLD!
NOTERA! Högtalaren är såld och ingår INTE i försäljningen av IC-756proIII ovan.

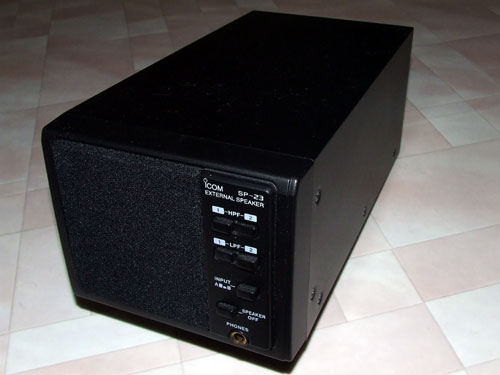

Högtalare SP-23 / Front / Höger sida

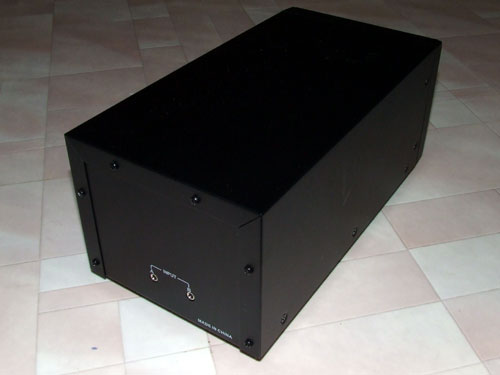

Högtalare SP-23 / Baksida / Vänster sida

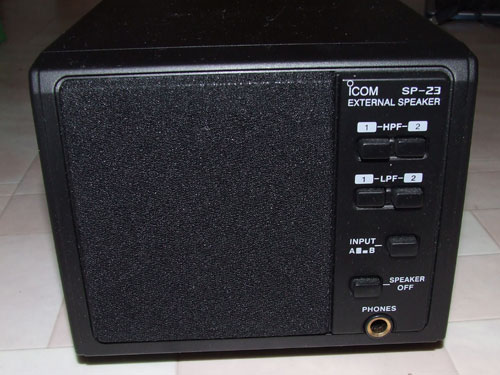

Högtalare SP-23 / Närbild front (Lite dammig!)

________________________________________________________________________________
2006.08.05 Some DX Worked, reports '59' no bad remarks on the audio quality. I return with more results after more testing... ________________________________________________________________________________
2006.08.03 Trying the rig with the 'HAIL HM-i' microphone, initial reports was 'Audio NoGood' - Was using too much bass, now using this settings in the 'LEVEL SET' menu.

LEVEL SET and CONTROL Readings

MIC GAIN Controle	2 a'clock
MIC COMP Controle	2 a'clock
COMP 'WIDE' LOW	100 Hz
COMP 'WIDE' HIGH	2900 Hz
SSB TX Tone (Bass)	-2
SSB TX Tone (Treble)	+4

________________________________________________________________________________
2006.06.15 Got this rig used from 'A.F.R Electronics' down in Sundsvall.

I used the ic-756 'Standard' rig some years ago, i was quite satisfied with the 'standard' rig,- so i don't think i will get disappointed whit this one!



- Dokumentation -
Complete Users manual (In 3,4Mb .pdf file)
IC-756proIII Service manual (In 20Mb .pdf file)
Some Mods For the ic-756pro3 (In 3,4Mb .pdf file)
QST March 2005 Review of the 756pro3 (In 2,6Mb .pdf file)


- Technical data -

FACTORY SPECIFICATIONS
========================================
Transmitter:
Frequency coverage..1.5--29.7Mhz 50-54Mhz
Output power........100W SSB/CW/FM - 40W AM

Receiver:
Frequency coverage..0.03--60Mhz
Sensitivity(Preamp).Less than 0.16uV/10dB S/N
                    (Within range 1.8-29.9Mhz SSB Mode)
General:
Dimensions..........340(W)x 111(H)x 285(D)mm
Weight..............5.2 Kg
Microphone..........Handheld IC-MH5 + Desktop IC-SM5

Manufactory.........ICOM Inc.
                    1-9-16 Kamihigashi, Hirano-Ku
                    Osaka 547, Japan
