- Cleaning the TH-7DX traps -

Now its time to clean the traps inside.

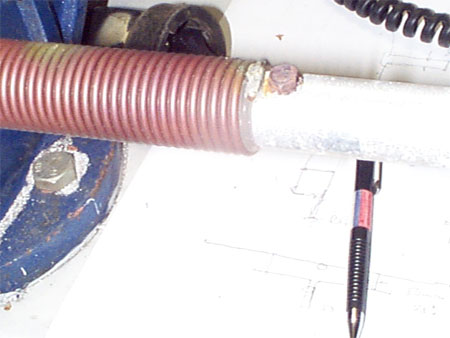

Corrosion at the trap-coil connections

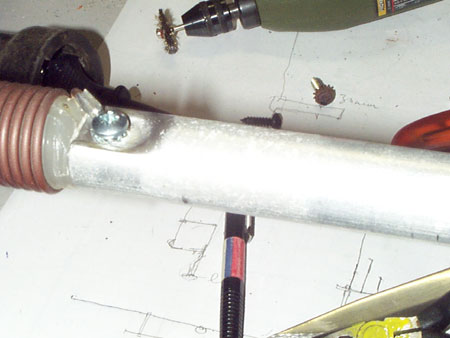

I clean the connections using a brass brush, i replace al galvanized screws with stainless screws. The connections was then treated with accid free vaseline paste. I poliched the coils clean with a quite hard nylon bruch. The traps was reasembled, make shure the plastic distanses go in place.

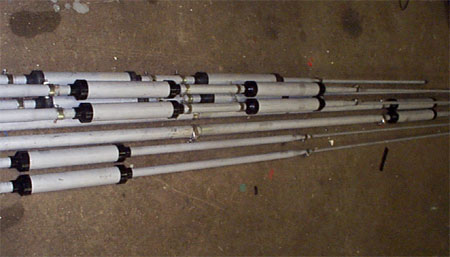

Al the trap elements ready and assembled. i use steel wool to glean the element joints before re-assembling.

- Next -
Mounting the antenna feed system and boom.
