- Disassembly of the TH-7DX traps -

Make sure you mark everything, it makes it easy to put together again.

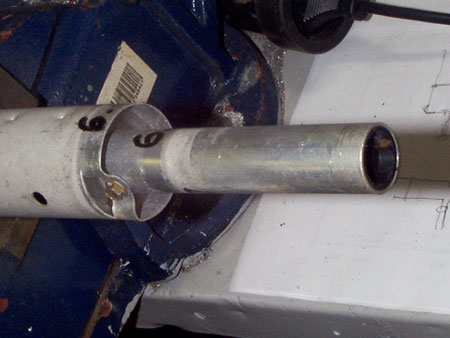

I removed al the plastic parts from the traps, and marked the parts.

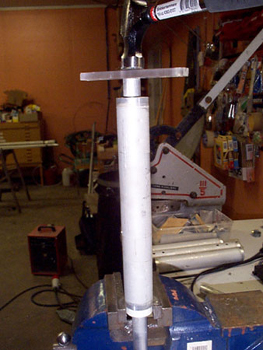

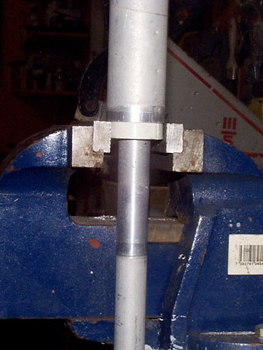

Use a pice of nylon plastic o.e. and a hammer to drive the traps apart. This can only be done from one end, where the outer trap pipe is screwed, se the photo above also. Detail right photo: The outer pipe on the trap, rests on surface.

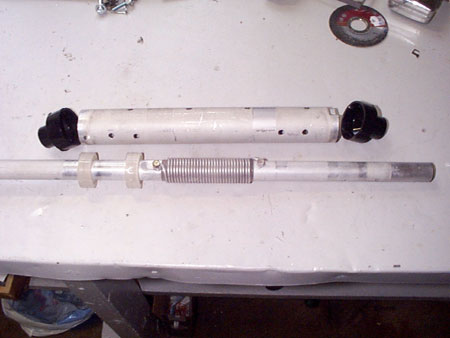

The trap is disassembled

- Next -
Cleaning the traps.
