- 2 x 19 meter dipole -
2007.05.20 Mounted a HomeBrew 1:1 AirCore balun on the dipole today.
2007.04.08 Updated this page with some 'missing' images and information.


Ready made dipole

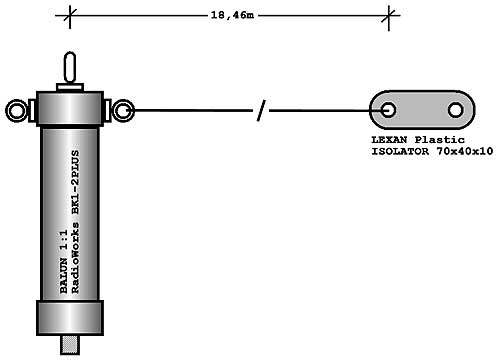

Dipole principle / one dipole half


Ready made balun connection

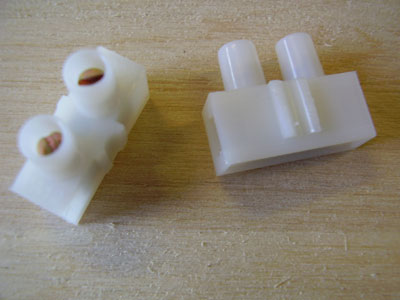

Screw terminals used

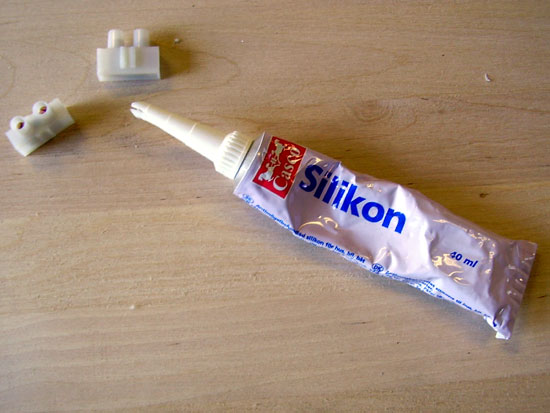

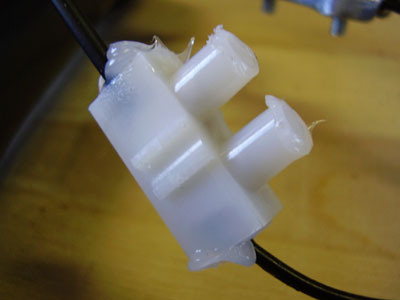

Building silicone used

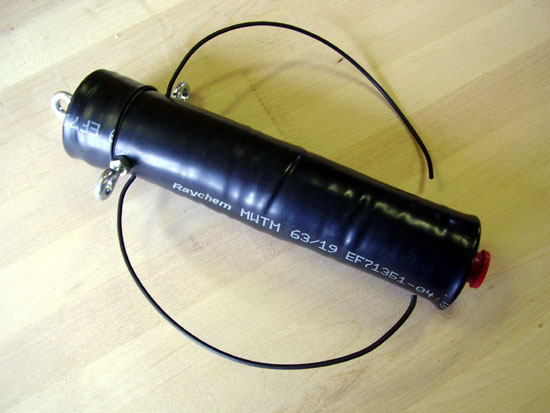

HomeBrew 1:1 AirCore balun 1,5 kW 3,5-50 MHz

- Technical data -

SPECIFICATIONS
========================================
Total lenght ......... 36.92m (End to end)
Lenght one side ...... 18,46m (Center to one end)
Center frequenzy ..... 3,730MHz
Balun ................ 1:1 B1-2KPLUS - 1:1 50ohm SO239
Antenns wire used .... Swedish military DL-1000
                       Telephone wire 4x steel 4x cu parts
