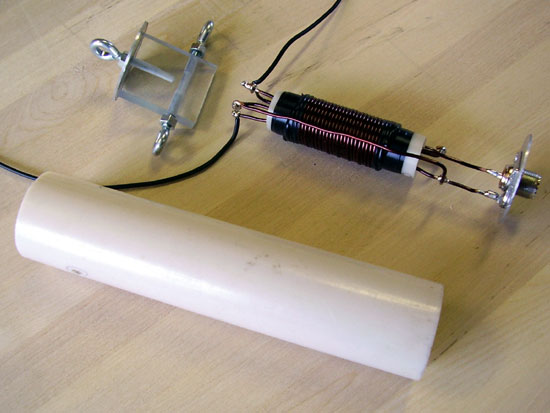

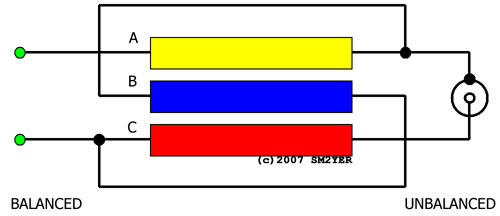

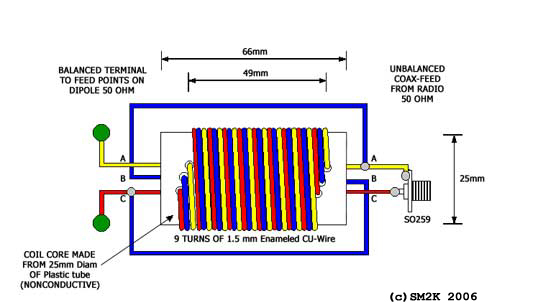

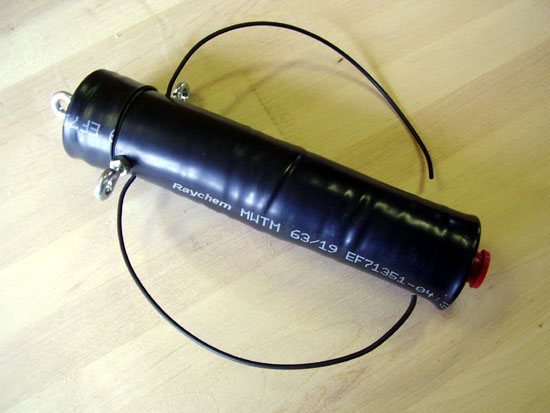

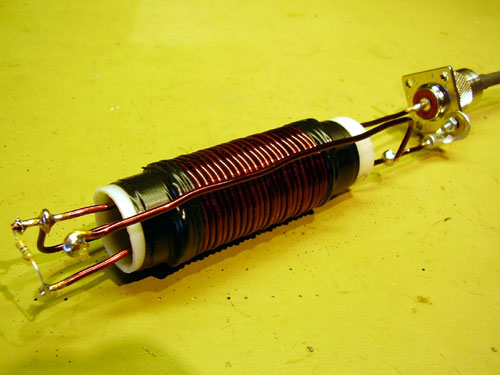

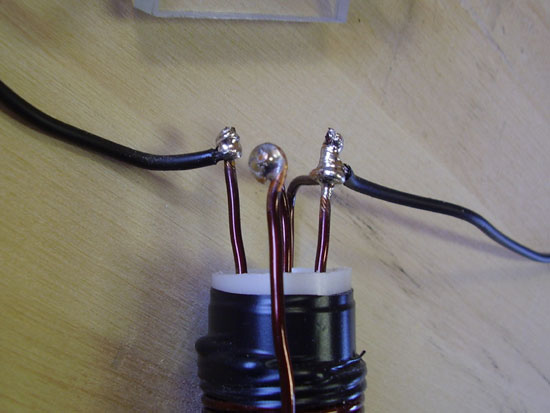

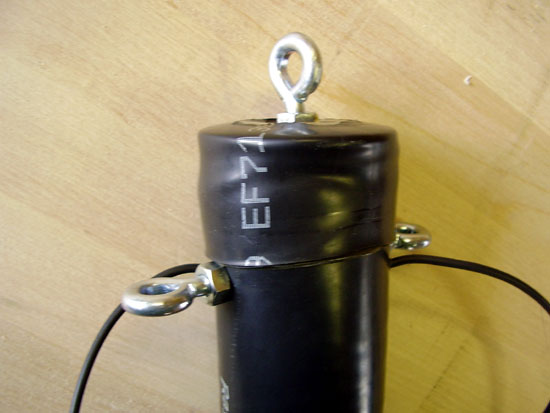

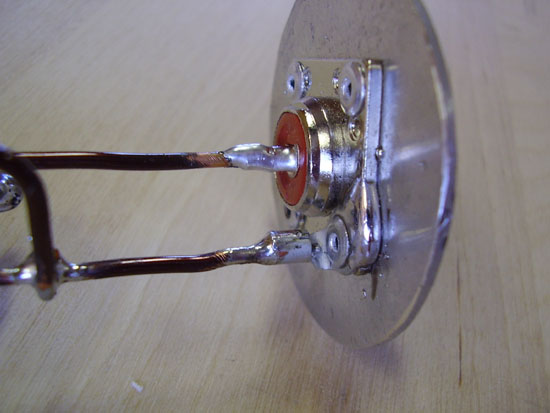

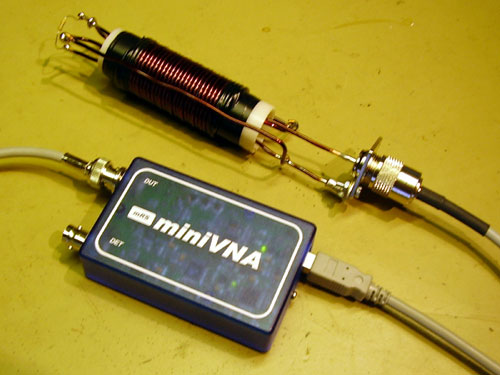

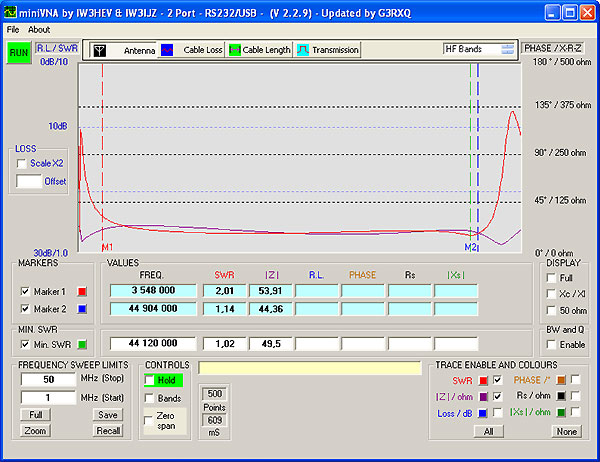

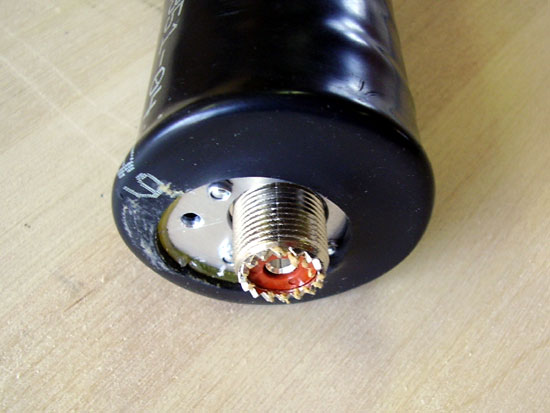

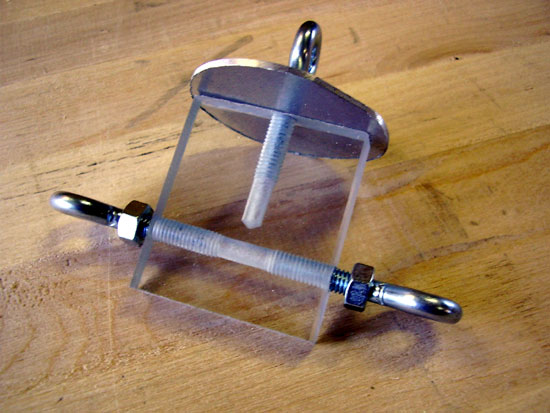

![]() - 1:1 HomeBrew AirCore Balun - 2007.05.20 Made this 'AirCore' balun for use with a singe band portable 80M dipole. The manufacturing is quite simple and the result is a nice and very 'Heavy Duty' baluna. This type of balun is normally used with broad-band or multi-band wire antennas,- where gamma-match or other narrow-band matching is not suitable. The baluna is also suitable for use with logo-periodic or multi-band directional Yagi antennas. ![]() - Technical data - SPECIFICATIONS ======================================== Frequency responce ... 3-30 MHz Maximun Input Power .. At least 1 KW Input Impedance ...... 50ohm unbalanced Impedance ratio ...... 1:1 (In/Out) Dimensions ........... Weight ...............- Making the balun - ![]() Principle - The coils on an air balun is not different from an Ferrite-balun, in the layout above you see the principle. Two coils (Yellow & red) is used as straight thru-feed, one for center conductor an the other for the shield conductor, they are connected directly to each dipole half, The blue coil is used for reversed 'pick-up' and balances the dipole connections. ![]() The Air-balun is made on a plastic 'Nonconducting' core,- Use a pice of plastic tubing about 25mm in diameter and about 66mm long. Drill tree 2mm holes,- slightly in diagonal in one end, whith about 5mm distance. drill tree 2mm holes in the same manner in the other end of the tube,- distance between the two hole-rows is 49mm. (On the images below i use 2mm Cu wire, the measurements given in this text is calculated using 1,5mm cu-wire) ![]() Ready made coil and the test setup Hint! It is best to make one coil at the time, dont trye to put al tree on the core at once. - Testing the balun - To this moment my only test is the frequency respons shown here. I also need to make som loss/return loss measurements. ![]() Test setup ![]() Frequency response using mini-vna ![]() Parts before final assembly ![]() Inside of so-239 connector at balun bottom ![]() Connection cable to balune core connections ![]() Internal assembly for the antenna Wire attachment and hanger pulley ![]() Drain hole at balun bottom ![]() Antenna Wire attachment and connections Go Back! ![]() ![]() ©1999-2006 SM2YER Goran |
