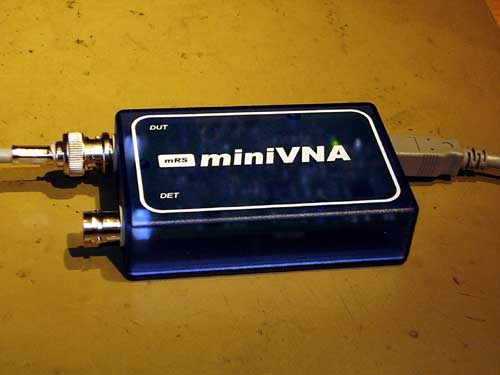

- MiniVNA 'Vector Network Analyser' -
2006.11.28 Added some test results from running the miniVNA on my antennas -->Here!, i'm trying to get the software running om fedora core5 linux on my tablet PC in order to get a handy 'field unit'. I return with the results.

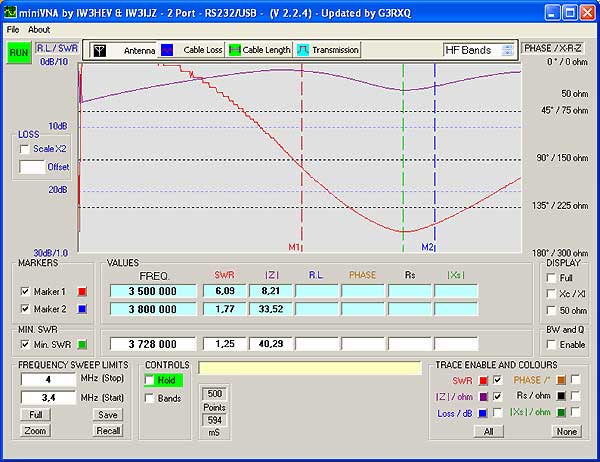

Screendump

- Documentation -

Complete Users manual (In 37Kb .pdf file)
Some test results (From my antennas)


- Technical data -
FACTORY SPECIFICATIONS
========================================
Frequency ............. 0,1 - 180 MHz
Output ................ 0 dBm
Frequency scan time ... 0,6 sec
Refl. Dynamic range ... 40 - 35dB @ VSWR 1,06:1 or better
Measures .............. VSWR, RL, Rs, Z +/-jx, Phase, Cable length. R/L/C
Go Back!


©1999-2006 SM2YER Goran
