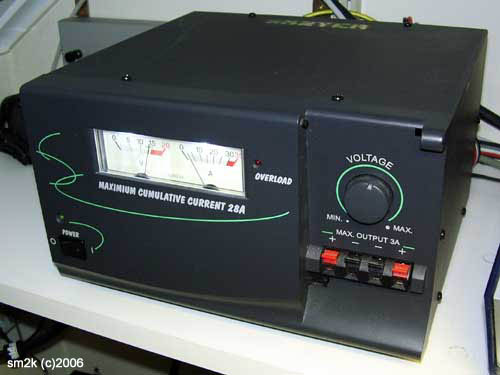

- Powersupply MAAS EPA-9300-



- Documentation -
  • Manual / Schematics (In 514Kb Large .jpg image file)
  • Datablad (In 324Kb Large .jpg image file)
    FACTORY SPECIFICATIONS
    ========================================
    Input Voltage ...... 240V/AC
    Input Current ......
    Output Voltage ..... 13.8V/DC
    Output Current ..... 28 Ampere (Maximum 30A)
    Dimensions .........
    Weight .............
    Manufactory ........ MAAS

    Fan replacement
    2006.08.18 Replaced the noicy standard 80mm fan inside the 'MAAS' powersupply. Decided to trye a pc-grade 80mm low-noice fan. I been using this type of fan in my HTPC project - Noice is specified to 12dB from the factory

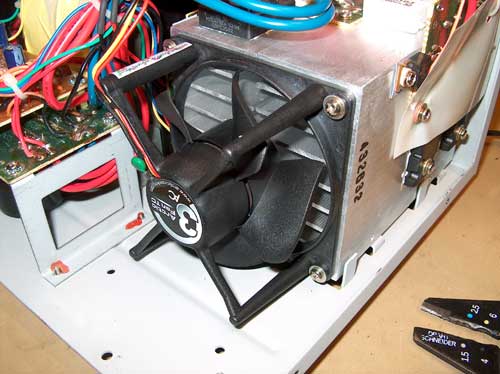

    The Arctic Fan 3TC in place
    FACTORY SPECIFICATIONS for the 3TC Fan
    ========================================
    Input Voltage ...... 12V DC
    Input Current ...... 0,12Amp
    Dimensions ......... 80x80x45mm
    Weight ............. 75g
    Air Flow ........... 32 CFM (Max)
    Fan Speed .......... 1900 RPM (Max)

    Manufactory ........ Arctic cooling
                         Switzerland

    Using LED instead of Lamp's
    When the scale lamps on this one failed, i desided to trye to replace them with 2pcs of 5mm LED diodes, i found some white ones (Thay are actualy bright blue)

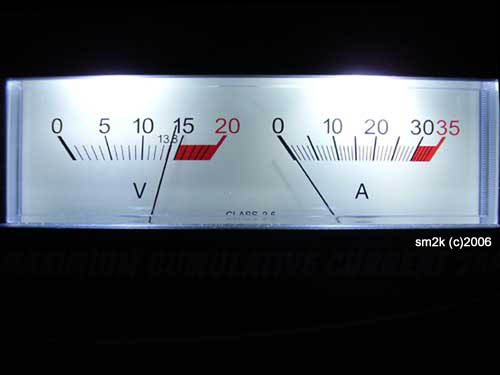

    Replaced scale lamp's with white LED's

    2007.09.16 Made some modifications to the LED installation today. There is always some differance in quality to any two LED-Diodes. Due to this fact, if hocked up in parallel one of them always carry more of the load,- and give therfore more light. The modification is made to eliminate this problem.

    The LED's requires 3,5V 30mA, i use now also use two resistors in parallel, one to each LED, the current drain is 30mA per one LED, i hoocked them up to the output voltage 13,8v so i deeded to make a voltage devider using a 343ohm (350ohm) 1/2watt resistor. - The LED's is not warm so i 'mounted' them above the meters using a glue-gun.

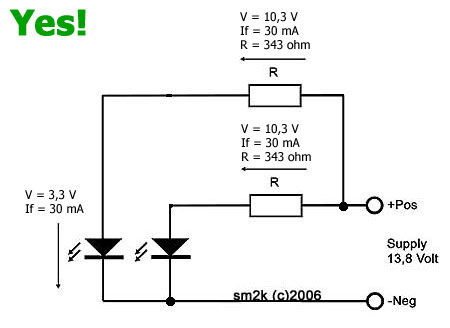

    Modified circuit drawing

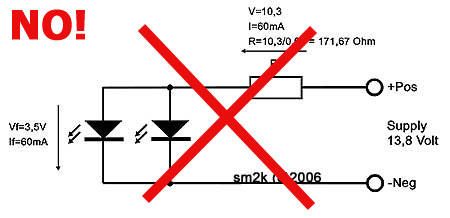

    Previous circuit drawing

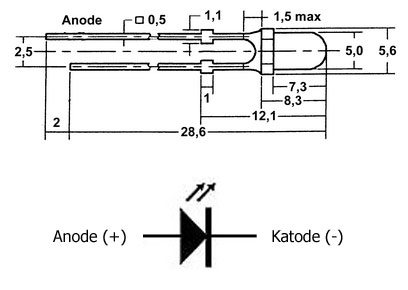

    LED Pinout

    Calculation of voltage devider
    ========================================
    Voltage drop over the diodes need to be 3,5 Volt
    Supplied voltage is 13,8 Volt
    Needed voltage drop over resistors: 13,8 - 3.5 = 10,3

    Using 'ohm's law' R = U / I
    ========================================
    Resistance(in Ohm) equals U(in Volt) devided by I(in Ampere)
    10,3 / 0,03 = 343 (I use standard resistor value 350 ohm)

    LED SPECIFICATIONS
    ========================================
    Drive Volt (Vf) ....... 3.5/4 (Typ/Max)
    Current (If mA) ....... 30 mA
    Emitted Light (lv) .... 7000 mcd

    LED's data sheet

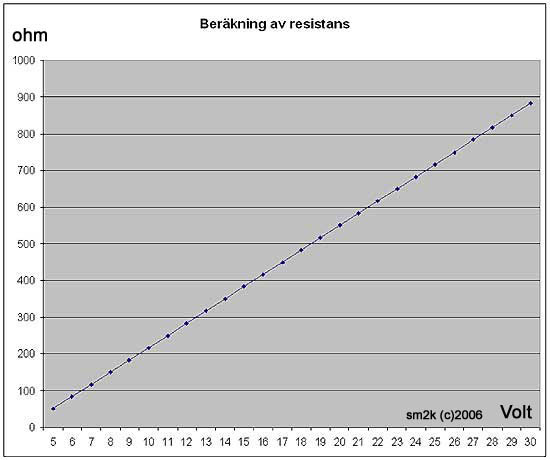

    Voltage devider projection
    This diagram / table show needed resistans for voltage supply from 5-30volt for a SINGLE 3,5V 30mA LED diode


    If(A)   Vf(V)   Supply(V)   Drop(V)   R(Ohm)*
    ============================================
    0,03    3,5     5           1,5       50
    0,03    3,5     6           2,5       83
    0,03    3,5     7           3,5       117
    0,03    3,5     8           4,5       150
    0,03    3,5     9           5,5       183
    0,03    3,5     10          6,5       217
    0,03    3,5     11          7,5       250
    0,03    3,5     12          8,5       283
    0,03    3,5     13          9,5       317
    0,03    3,5     14          10,5      350
    0,03    3,5     15          11,5      383
    0,03    3,5     16          12,5      417
    0,03    3,5     17          13,5      450
    0,03    3,5     18          14,5      483
    0,03    3,5     19          15,5      517
    0,03    3,5     20          16,5      550
    0,03    3,5     21          17,5      583
    0,03    3,5     22          18,5      617
    0,03    3,5     23          19,5      650
    0,03    3,5     24          20,5      683
    0,03    3,5     25          21,5      717
    0,03    3,5     26          22,5      750
    0,03    3,5     27          23,5      783
    0,03    3,5     28          24,5      817
    0,03    3,5     29          25,5      850
    0,03    3,5     30          26,5      883

    *Use a close standard resistor value

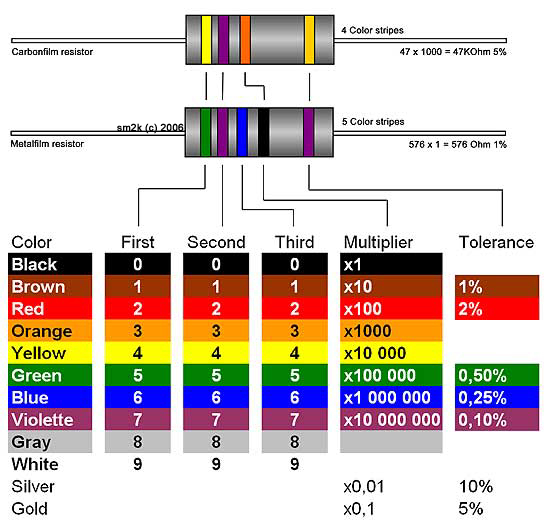

    Reading resistors color code



    Color code
