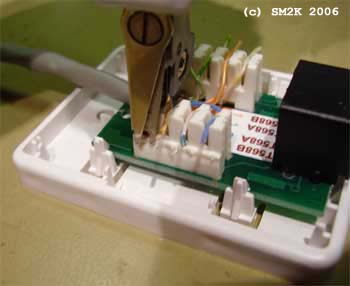

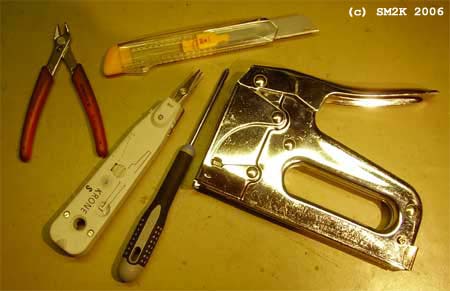

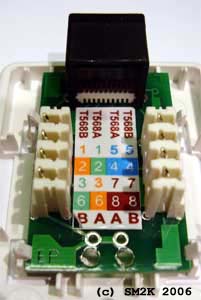

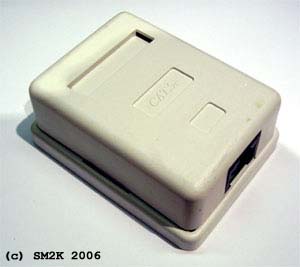

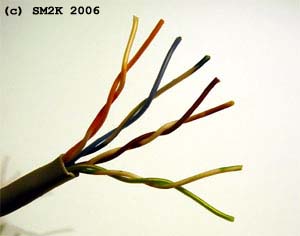

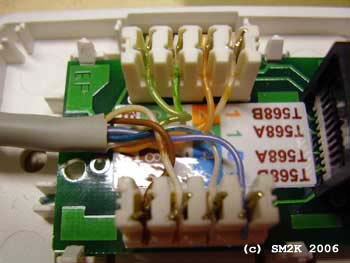

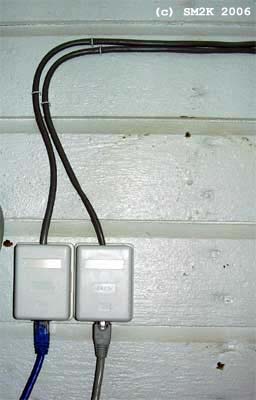

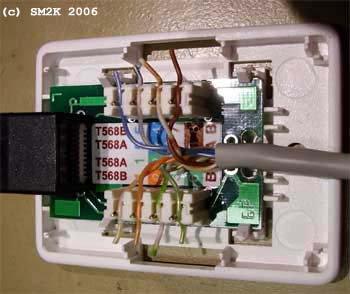

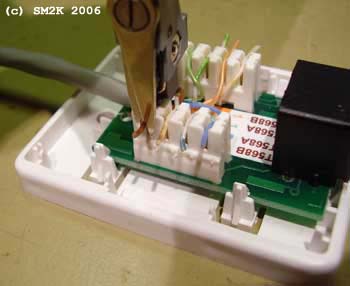

![]() - This page is under construction... - - Physical installation of a Ethernet LAN - On this page i try to describe howto make your Ethernet LAN installation. In my work i also supervise and maintain many different both Physical and Logical LAN's. (LAN/VLAN) I also work with routing and switching techniques ![]() Ethernet cable - UTP ![]() RJ45 (Modular) external Ethernet Outlet ![]() Tools Material - list ================================== 1. Installation cable Unshielded Twisted Pair (UTP) Cat 5e / Cat 6 with solid cu-wire x8 2. Patch panel 3. RJ45 (Modular) Ethernet Outlets 4. Sutable (5mm) Cable clamps or cable staples 5. A Cordless Power drill and drills Tools - list ================================== 1. Modular tool (KRONE) 2. Sharp knife 3. cable cutter 4. screwdriver 5. cable staple gun (If possible)- Layout - First you need to find a suitable location for your 'LAN-Central' - It's preferred that it is placed as central as possible in your house or flat. Maby close to a stairway or in a closet in your hallway is a good location. Is is from this central al your cables is going out to your different Ethernet Outlets. ![]() The 'LAN-Central' switch/router - Cable Installation - ![]() Stapled cables and two Ethernet outlets in my garage - Wire Connections - When the cables is in place, it's time to connect al the Ethernet Outlets and the Patch-Panel. Connect the wires inside each Ethernet Outlet, using the modular tool (KRONE-Tool) and the 'T568B' color markings. Follow the steps 1 to 4, as shown by the images below. Also Take a look at the Patch panel installation, you find some nice information. ![]() color markings inside the Ethernet Outlet ![]() 1. Strip about 30mm from the outer jacket and spread the 8 wires as shown in the image above. ![]() 2. Place each of the 8 wires according to the 'T568B' color markings. ![]() 3a. Using the modular tool (KRONE-Tool) puch down each wire in place. ![]() 3b. the excess wires is automatically cut. ![]() 4. Closeup on finished connection. My Local Area Network (LAN) Physical installation of a Ethernet LAN (This Page!) WAN Connection Capacity Test. My Server@Home *** End of page *** <-- Go Back! ![]() |
