- UV-Box -
This is a simple way to 're-cycle' an scrapped PC Scanner. The UV-Box is to be used when manufacturing of Printed Circuit Boards (PCB) - Later on in the text i also trye to describe the work-process i detail.

- The PCB development process -
Also read about the process, PCB development / PCB Etching / Fluid's and more --> Here!

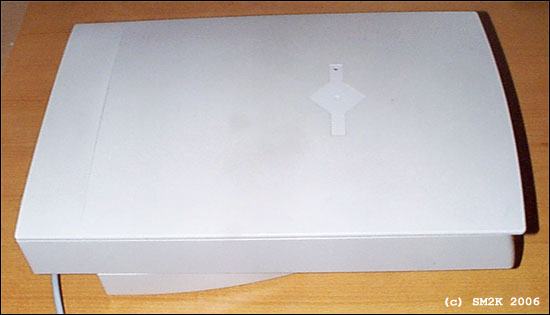

The old scanner... With new 'life' as a UV-Box

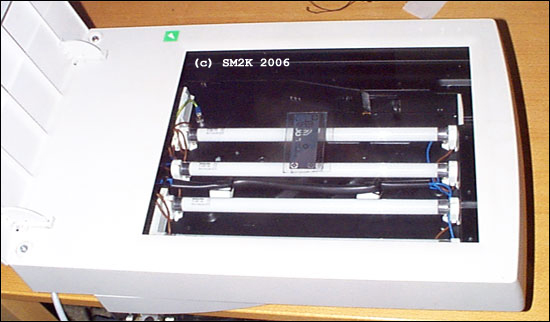

The UV-Box with the 'lid' open
Used material.
=========================
1. One used 'Scrapped' PC-Scanner 'HP-5100c'.
2. 4pcs 8watt UV-Light tube
3. 8pcs Holders for the Light tubes
4. 2pcs Light tube reactor
5. 4pcs Light tube lighter
6. 4pcs Holders for the Light tube lighter

*** End of page ***
