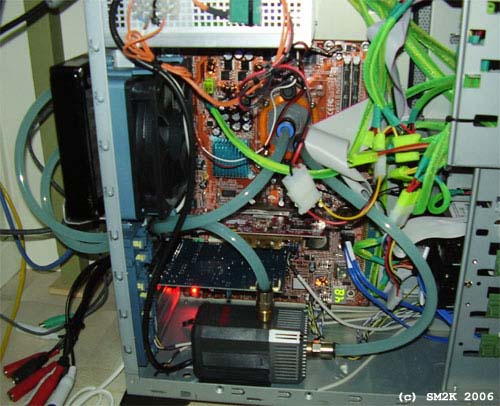

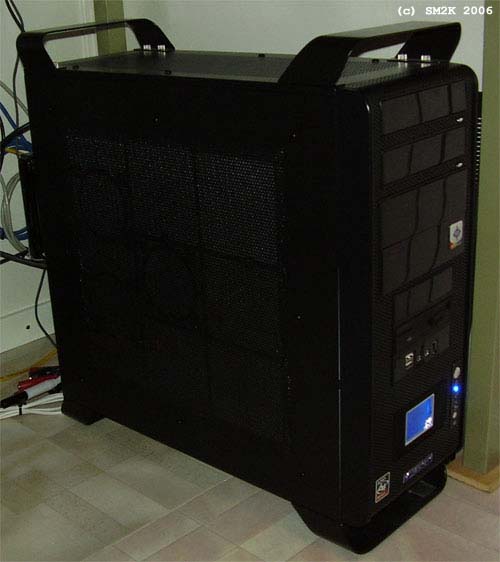

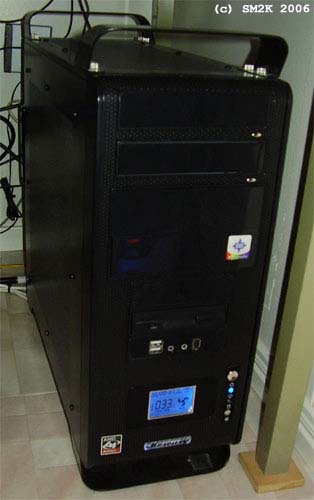

![]() - Updated Water cooled workstation in 2005 - In 2005 i replaced the small chassi (Se text 'First Water cooled PC in 2004') With a Mercury Miditower 'Apple G5 lookalike' chassi. Used parts / equipment ====================== Mercury Miditower with LCD-display. WaterChill CPU waterblock, BlackIce 120x120 radiator, Eheim pump. Motherboard : ABIT KV8 PRO CPU : AMD Athlon 64 3200 @2250Mhz Memory : TwinMOS PC3200 1024Mb NoECC HardDisk 1 : WesternDigital WD1600JD 160Gb HardDisk 2 : WesternDigital WD1600JD 160Gb Grafic : RADEON 9250 PRO 128Mb Soundcard : M-Audio DELTA AP192 powersupply : 430W ANTEC TRUEPOWER II ATX12V 2.0 ATX Measured temperatures ====================== CPU Temp : 45dgrC normal 49dgrC max (IN BIOS) SYS Temp : 34dgrC normal 42dgrC max (IN BIOS) PWM Temp : 28dgrC (IN BIOS) HDD 1 Temp : 41dgrC normal 48dgrC max (By Speedfan) HDD 2 Temp : 41dgrC normal 48dgrC max (By Speedfan) Measured voltage data (IN BIOS) ====================== Vcore : 1.53V NB Voltage 2.6V DDR Voltage : 2.74V HT Voltage 1.26V DDR VTT : 1.4V AGP VDDQ 1.60V ATX +3,3V : 3.43V Standb. +5V 5.21V ATX +5V : 5.18V 3V Dual 3.40V Measured noice ====================== No measurement done!About the PC-Cabinet Conclusion This one is really quiet! And the price for nice water cooling parts is going down. I use the same parts, exept for the waterblock in an other computer but this one is much more quiet?? And i cant realy pinpoint the reason for this? ![]() Side view ![]() Front viev ![]() The complete installation Also read about my First Water cooled PC in 2004 And my Water cooled PC-Server @ home Details of my water cooled ATX Powersupply <-- Go Back! ![]() ©1999/2000/2001/2002 SM2YER Goran |
