- Dualband handheld UHF/VHF tranceiver YAESU VX-2 -
2006.09.30 Now been using the vx-2 radio for a couple of weeks. The max effect is a bit on the low end. But i like the quick battery charge cycle

2006.09.01 Got this transceiver used from a friend. A dog chewed on the antenna, i made a 'quickfix' with some heat shrinking plastic isolation tube. Placed an order for a new original antenna, a FNB-82LI extra battery and the MH-37A4B Ear piece/Microphone

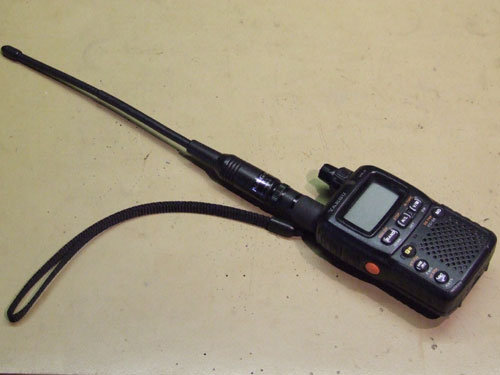

The transceiver with 'Nagoya NA-701' antenna

- Documentation -

Complete Users manual (In 37Kb .pdf file)

- Technical data -

FACTORY SPECIFICATIONS
========================================
Frequency range.....TX: 144-146 / 430-440 MHz (Europe and Asia)
                    TX: 144-148 / 430-450 MHz (USA)
                    RX: 0.5-999 MHz (cellular blocked in the US)
Mode................TX: FM
                    RX: AM/FM/WFM
RF Power output.....1.5-3 / 1-2 W
Sensitivity.........N/A
Selectivity.........N/A
Image rejection.....N/A
Voltage.............3.2-7 VDC
Current drain.......RX: 20-150 mA
                    TX: 1.2-1.8 A
Impedance...........50 ohms, SMA
Dimensions..........47*81*23 mm (W*H*D)
Weight..............182 gr (with battery and antenna)
Other...............5000 memories.
                    CTCSS, DCS, DTMF & ARTS
Manufactory.........YAESU MUSEN CO, LTD.
                    1-20-2 Shimomaruko Ota-Ku
                    Tokyo 146, Japan

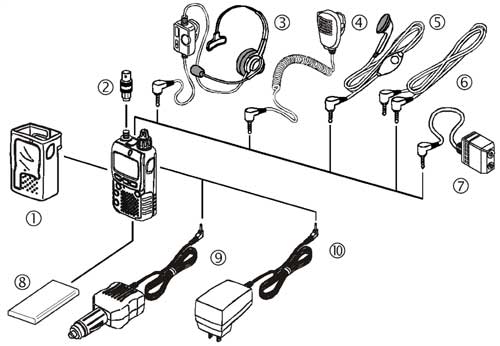

- Accessories -


Accessories
