- New AC power feed -

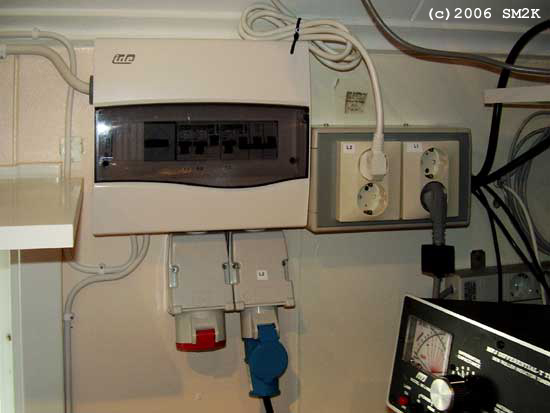

When i moved my shack to the second floor i also make the AC installation specialy for Radio use. The main AC supply in Sweden is with 3 phase, 380V Phase to other Phase, and 240V One Phase (Live) to 'Zero' or ground.

2006.08.29 Got some problems after i updated the AC Power feed to my shack. The automatic fuse 'blows' every now and then when i turn on my Dentron MLA-2500 Power Amplifier.

Decided to build an 'External' StepStart Module to reduce inrush power when starting the PA. The external unit is preferred in my setup, mainly because there is almost no space to put the unit inside the MLA-2500 PA, also the unit is to stay with me, when or if ever replacing the PA.



- Technical data -
SPECIFICATIONS
========================================

AC Input from main
3x380V 16A AC 50Hz

AC Outlets
3 x 10A Automatic fuse
1 x 16A Automatic fuse (For 1-Phase PA)
3 x 16A Automatic fuse (For 3-Phase PA)
First phase (L1) is used for my DC power supply (13.8V/28A) to drive my tranceivers, also used for rotor and radio-accessory supply

Second phase (L2) is used to supply my MLA-2500 1-Phase PA.

Third phase (L3) is used for PC and other none radio stuff.
