- Tranceiver ICOM IC-7200 -
2010.12.31 The rig is SOLD! - Due to lack of interest at present time.

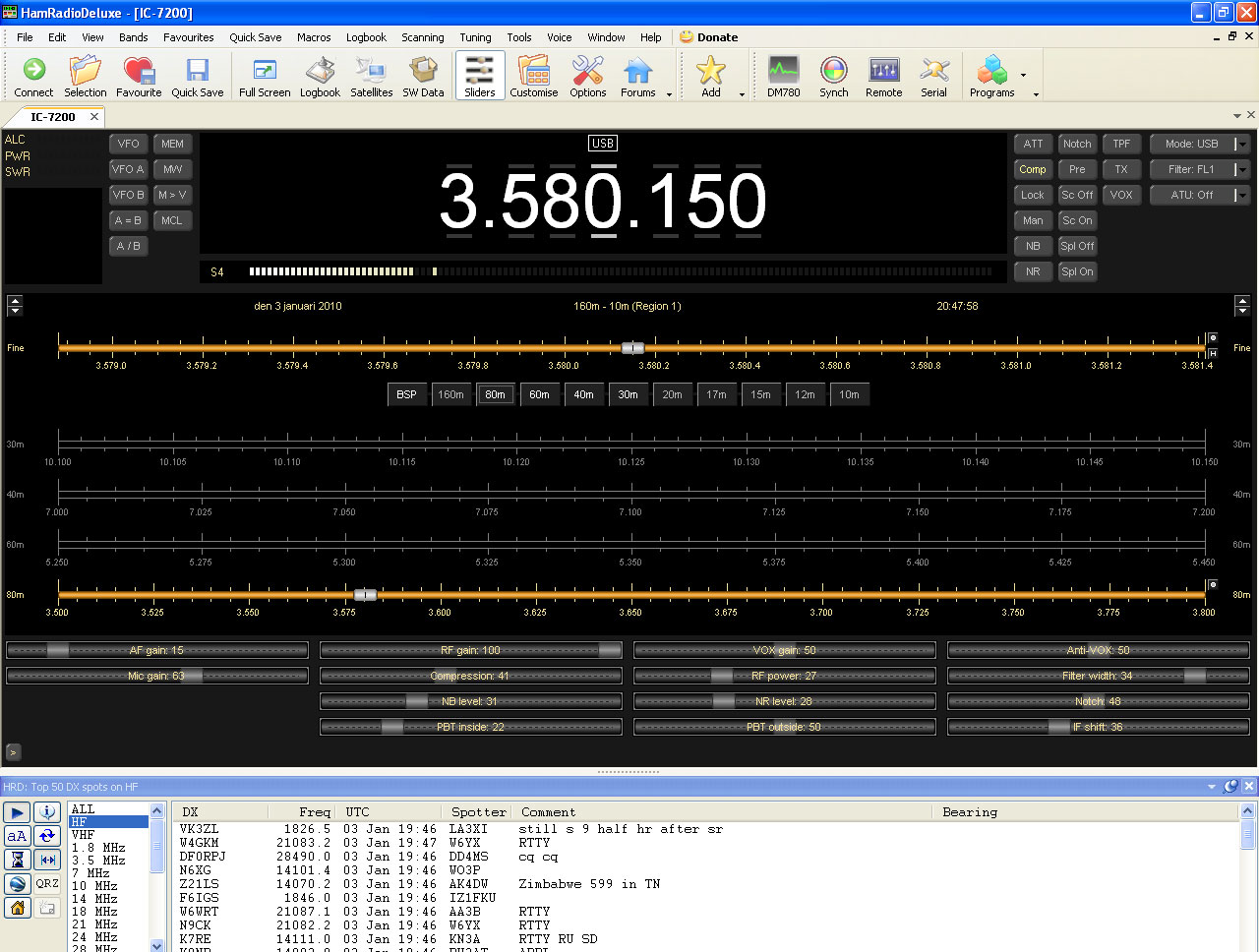

2010.01.03 Now also testing the USB Rig/Radio built in interface. No problems to controle the radio from PC using HRD 5.0 Build 2434 Beta - This version got the IC-7200 in the radio selection list ;-) Nice! - Almost any function on the radio is accessible from the PC software. The baud rate and CI-V address is set in the same manner as before in the radio setup menu and selected accordingly in the software.

Click on image to enlarge!

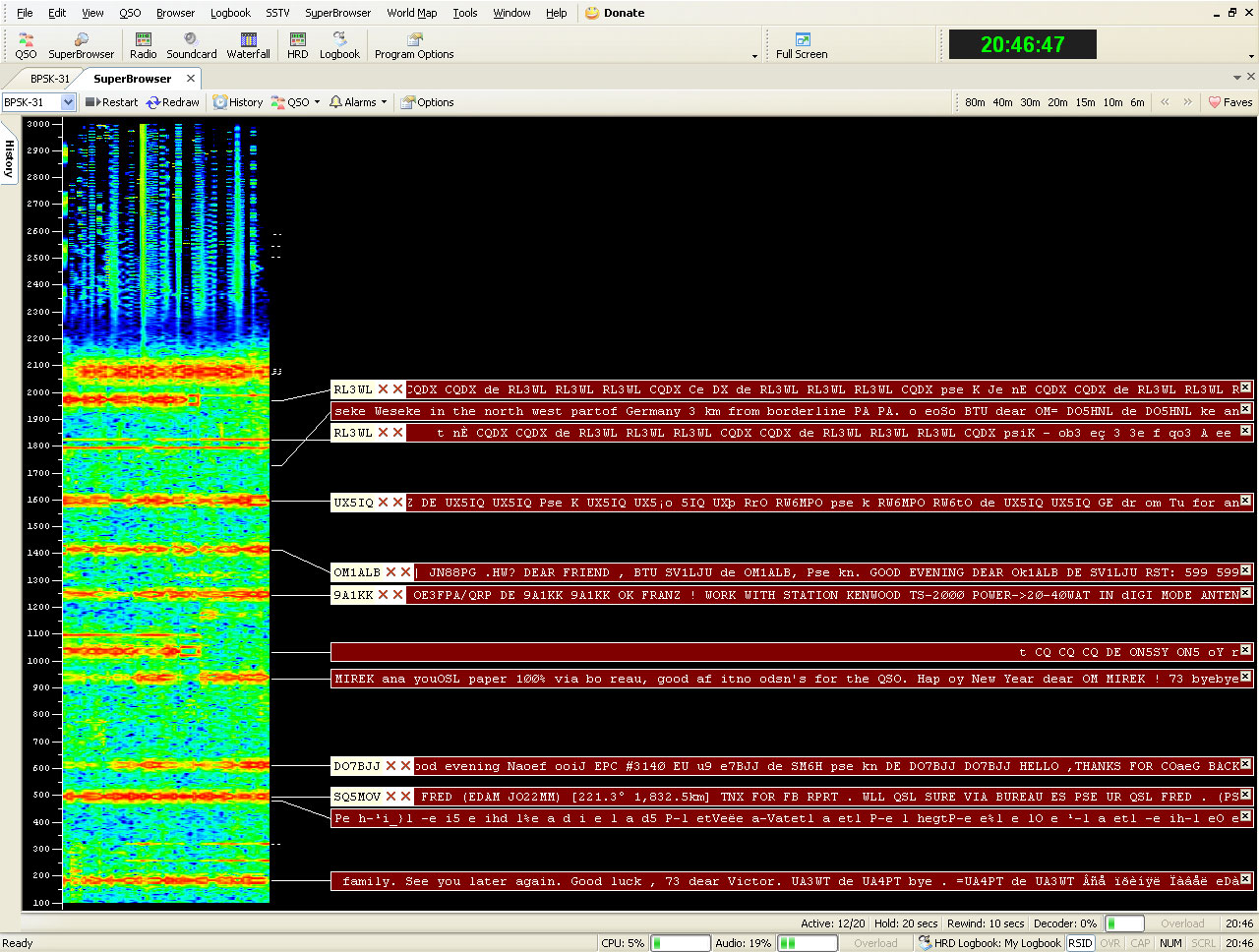

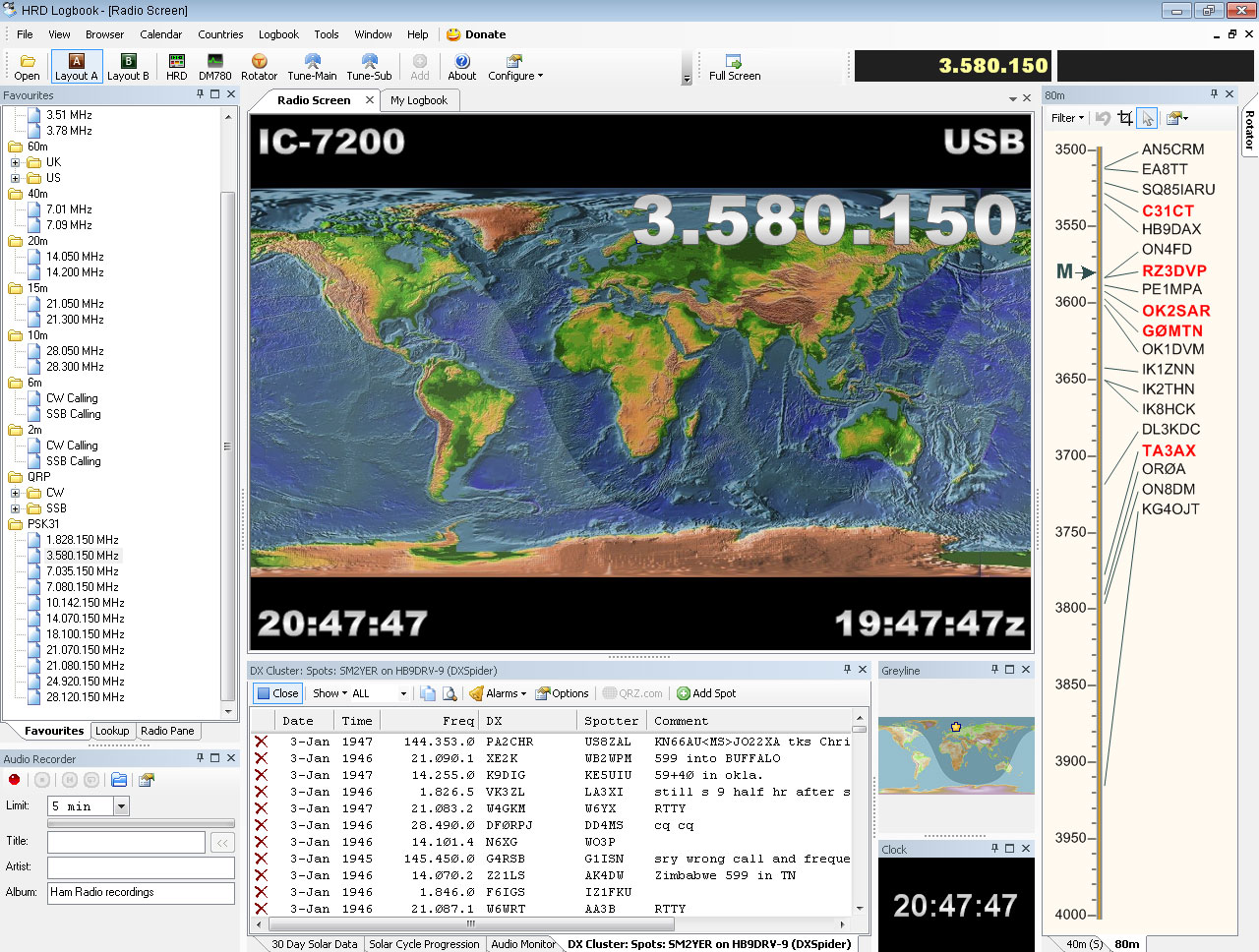

Also trying to get sound in/out via the USB cable for PSK usage, no problems. Listening in 3580,150 KHz, lot's of stations heard.

Click on image to enlarge!

Click on image to enlarge!

2009.12.04 First look. The rig is quite easy to start with. The 'Quick SET' function is nice. Simply press 'SET' and the most used settings is at your hand. Most other settings is also easy to access simply by pressing and holding any button. s.a. Setting compressor level, simply press anh hold 'COMP' button.

One disadvantage i discovered up to now is that there is no FM Mode on this one, i missed this when reading specifications prior to buing it. There is also only one antenna connector (No internal antenna selector)

ICOM Tranceiver IC-7200 - Front view

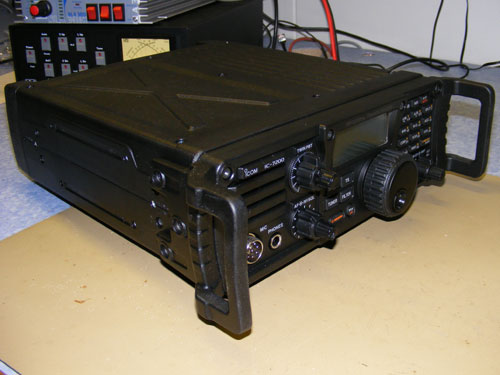

ICOM Tranceiver IC-7200 - Side view

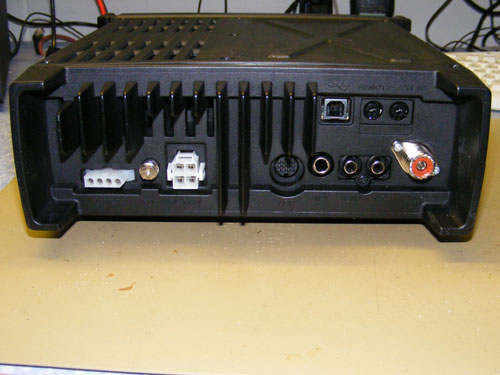

ICOM Tranceiver IC-7200 - Back view

- Documentation -

Complete Instructions manual (In 11.9Mb Large .pdf image file)

USB Driver installation Guide (4,1Kb Large .pdf image file)

Win2K/XP/Vista 32bit USB Drivers (633Kb Large .zip driver file)

- Technical data -

FACTORY SPECIFICATIONS
========================================
Transmitter:
Frequency coverage .... 1.8--50Mhz (Hambands only)
Output power .......... 100W SSB/CW/ - 40W AM/FM

Receiver:
Frequency coverage .... 0.1--50Mhz
Sensitivity (SSB/CW) .. (bandbredd soft, vid 10dB S/N)(Preamp ON)
                        1.8MHz-29.995MHz : 0.16µV
                        50MHz : 0.13µV
Sensitivity (AM) ...... 0.5MHz-1.8 MHz : 13 µV
                        1.8MHz - 29.995 MHz : 2.0µV
                        50MHz : 1.0µV

General:
Dimensions ............ 241(W) x 84(H) x 281(D)mm
Weight ................ 5,5 Kg
Microphone ............ Original Handheld

Manufactory ........... ICOM Incorporated
                        1-6-19 Kamikuratsukuri, Hirano-KU
                        OSAKA 547, Japan
