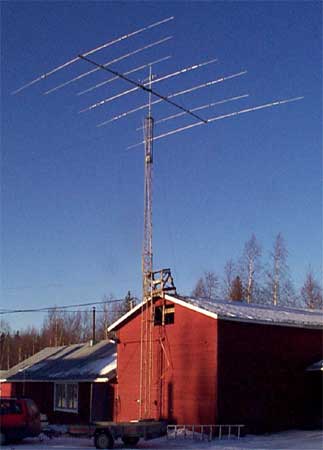

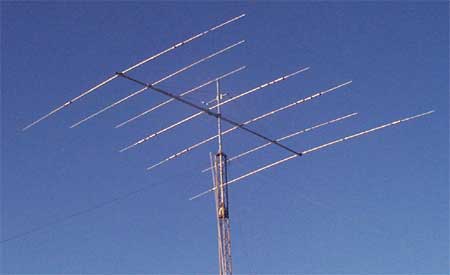

![]() - Hy-Gain TH-7DX 3-Band vertical beam - ![]() The TH7DX first 'flight' @ my QTH, OKTOBER-24 2003 It looks like the antenna is working, after nearly 30-years of usage. I disassembled the antenna, with the traps and everything. I then re-assembled it according to the original manual. The initial test-run only tells me that the SWR is according to specifications, a little high on 20meter, but i think this is due to ground reflection, the antenna is now only about 12 meters above ground and only 6 meters away from a metal roof... I will trye to get better location for the antenna, and also some real compare usage on the bands, so fare it gives higher S-readings on some signals comming in with low angle (DX) from short-path beaming north/west for USA/Canada, This is al i know at present time. ![]() The TH7DX on home-made crank-up tower 13meter above ground - Documentation - FACTORY SPECIFICATIONS ======================================== Frequency coverage..10/15/20 Meter Amateur bands Power Handling......Maximum legal power (USA) Impedance...........50 ohm Gain................8 / 8.7 / 9.6 dB Connector...........SO239 Dimensions..........7.32 meter (boom) 9.45 meter (reflector) Weight..............34Kg<-- Go Back! ![]() ©1999/2000/2001/2002 SM2YER Goran |
