- Butternut HF2V 40/80 Meter Vertical -
I bought this antenna used, but in new condition. First time up 2006.07.03 for SWR adjustments. I return with the result. a.s.a.p. I got a copy of the manual from SM2EJE, Sigvard, this copy is in much better quality then the one on Bencher's web-site.

Antenna adjustments ready, nice SWR readings. Waiting for move to final location in my garden, at the moment i'm using 40pcs of 11meter long ground wires. (DL1000)


The HF2V vertical for the first time / SWR adjustment on the way...

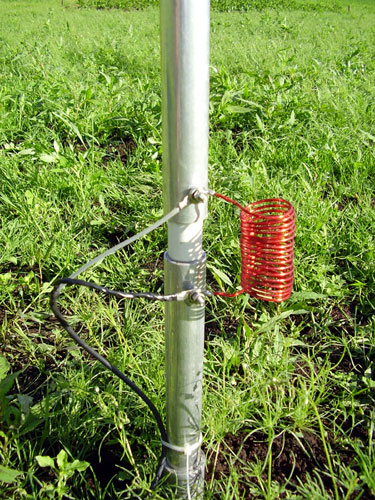

CloseUp's

- Documentation -

Complete Users manual Including GRK(In 5.7Mb .pdf file)

- Technical data -

FACTORY SPECIFICATIONS
========================================
Height (Adjustable) .............. 32 ft (9.8 m)
Shipping Weight .................. 13 lbs (5.9 kg)
Feed Point Impedance ............. Nominal 50 ohms
VSWR at Resonance ................ 1.5:1 or less on all bands
Power Rating ..................... 2 kW PEP on all bands
Unguyed Wind Survival ............ 60 mph (96.6 kph)
Bandwidth for VSWR 2:1 or Less ... 40m - entire band
                                   80m - 90 kHz
Active Element Lengths
========================================
Band     Length   Acts as
40 m     (9.8 m)  1/4
80 m     (9.8 m)  1/4

Measured SWR
========================================
Band    SWR     Center freq.
40 m    1:1,2 @ 7,038 MHz
80 m    1:1,5 @ 3,713 MHz

SWR measured using Kuranishi BR-210 SWR-Analyser
