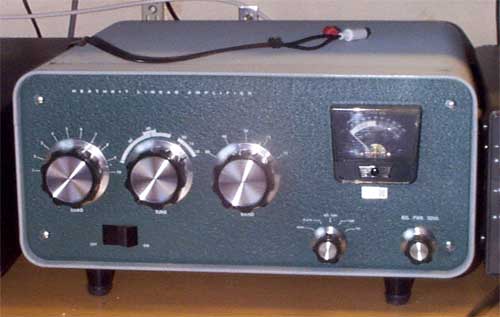

- Linear Amplifier HEATKIT SB200 -



- Technical documentation -

• Complete building and instructions MANUAL (in .pdf format 1.6Mb file)

• Some More images... (Un modified unit)
• SB-200 Modifications (Modified unit)

- Technical data -

FACTORY SPECIFICATIONS
========================================
Circuit............Grounded Grid Class B
Frequency Range....80, 40, 20, 15, and 10 Meters
Input Impedance....52 ohms, Unbalanced
Output Impedance...50 - 75 ohms, Unbalanced
Third Order dist...30db or better at 1000 Watts PEP
TUBE Complement....2x 572B
Cooling............Forced-air cooling
Power supply.......240VAC 50Hz - 8 Ampere
Drive power........100W SSB PEP
Input power........1200W SSB PEP
Dimensions.........14-7/8" Wide x 6-5/8" high x 13-3/8" deep
Weight.............35 lbs

Manufactory........HEATH COMPANY
                   Benton Harbor, MICHIGAN 49022, USA
