- Linear Amplifier DENTRON GLA-1000B -
Got this amplifier from the previous owner SM2ULZ in 2008.10.27


Front panel

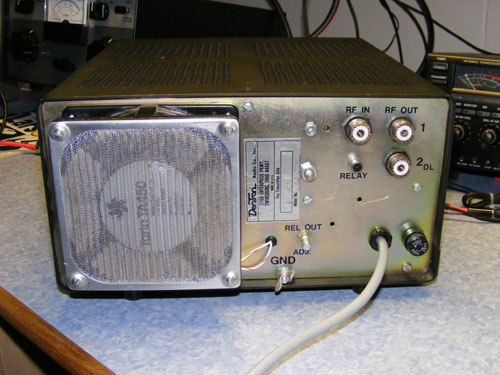

Rear panel - This Unit serial no# 4075

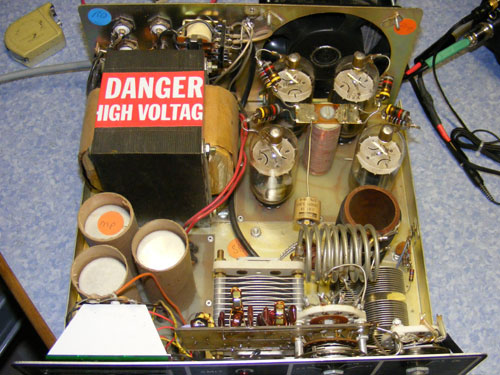

The original 6JE6C/6LQ6 tubes is in place inside

Now tested thru dummy load,- the HF output is as shown:
80m - 380-420W Max (Modulated AM Carrier)
40m - xxxW/Peek
20m - xxxW/Peek
12m - xxxW/Peek
- Technical documentation -
- Technical data -
FACTORY SPECIFICATIONS
========================================
Circuit ............ Grounded Grid Class B
Frequency Range .... 80 through 10 Meters
Input Impedance .... 50 ohms, Unbalanced
Output Impedance ... 50 - 75 ohms, Unbalanced
Third Order dist ... 30db or better at max output
TUBE Complement .... 4x 6LQ6 tubes
Cooling ............ Forced-air cooling using 1x 120mm fan
Power supply ....... 230VAC 50Hz - 7 Ampere
Input power ........ 125W SSB PEP
Output power ....... 6-800W SSB PEP
Dimensions ......... H 5.3/8" x W 11" x D 11"
Weight ............. 24 lbs

Manufactory ........ DENTRON RADIO CO, INC.
                     TWINSBURG, OHIO, U.S.A.
