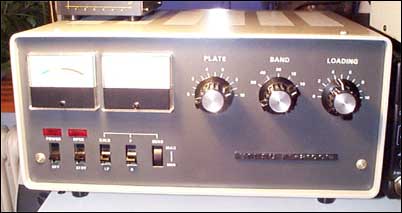

- Linear Amplifier YAESU FL-2100B -



- Technical documentation -

• INSTRUCTION MANUAL (in .pdf format 1.6Mb file)

• HOW-TO RE-TUNE the FL-2100B for 11-Meter

- Technical data -

FACTORY SPECIFICATIONS
========================================
Circuit............Grounded Grid Class B
Frequency Range....80 through 10 Meters
Input Impedance....50 ohms, Unbalanced
Output Impedance...50 - 75 ohms, Unbalanced
Third Order dist...30db or better at 1000 Watts PEP
TUBE Complement....2x 572B
Cooling............Forced-air cooling using 2 fans
Power supply.......230VAC 50Hz - 9 Ampere
Input power........100W SSB PEP
Outpot power.......1200W SSB PEP
Dimensions.........13,5"x6"x11,5"
Weight.............41 lbs

Manufactory.........YAESU MUSEN CO, LTD.
                    1-20-2 Shimomaruko Ota-Ku
                    Tokyo 146, Japan
