- Weather station / Oregon Scientific WM918 -

- Description -
2007.09.27 The weather station is now OnLine again, now using FreeWx on Windows NT 2000 platform.

The idea to get my own 'weather station' is to be able to log our local weather mostly for fun. I also have the weather station hocked to a computer, to log and to upload weather data to my web-site.

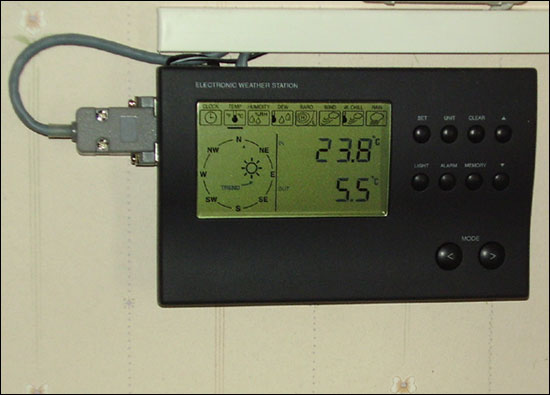

Indoor unit with RS-232 Serial cable to computer.

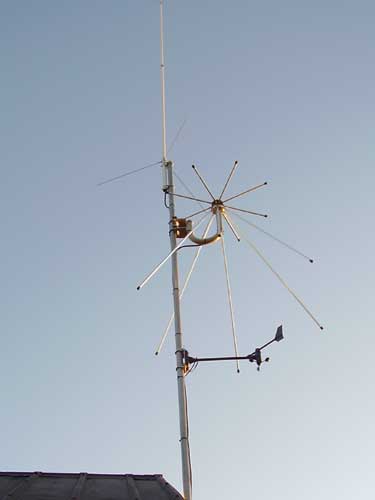

OutDoor unit - Anemometer

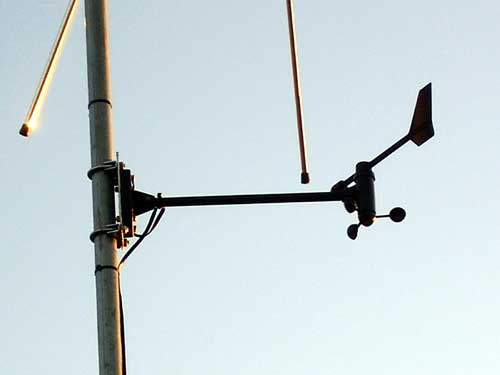

OutDoor unit - Anemometer / Closeup

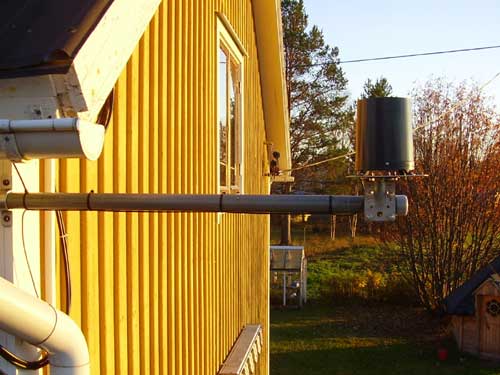

OutDoor unit - Rain Gauge

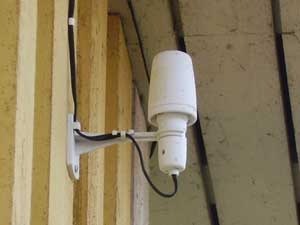

OutDoor unit - Temp / Atmospheric Pressure / Humidity sensor

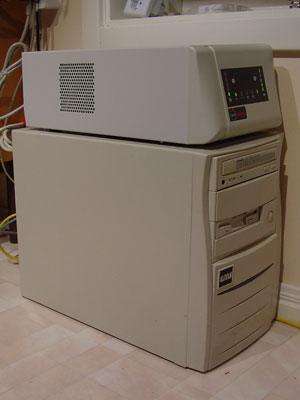

current WX-Server"Home
(Also hosting this web-pages and WebCam

2007.09.27 The server is updated again, take a look at the 'server' pages for updated information

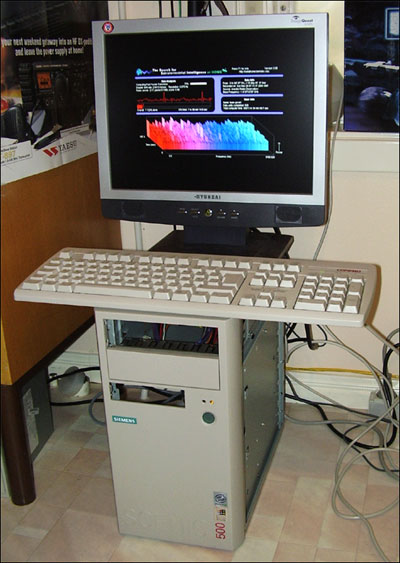

This is an image of the first Weather-Server
This is some information of my previous Weather-Server

- Local Weather -
Finaly i succeeded in my efforts to put my local weather report 'on-line'.
  • 'Realtime' local Weather report! Updated every 1h.

    Honors to the Brains behind...
    I now use wx200d server/client software on a Fedora Core5 (Linux) platfor.
    Author of the exelent software is Timothy D. Witham.

    Previous used software 'FreeWX' by Andy Keir. (Used on NT2000 platform)
    There is more information about the 'FreeWX' software @
    http://insvr1.midcoastwater.com.au/FreeWX/_sgt/m4_1.htm

    The hardware store...
    The weather station is found @ Sagitta Pedagog AB http://www.sagitta.se

    - Documentation -
  • User Manual (In 2.8Mb Large .pdf file)

    FACTORY SPECIFICATIONS
    ========================================
    Indoor Measurement Accuracy:
       Range: 32° to 104°F (0° to 40°C)..............+/- 2°F (+/- 1°C)
       Range: >104° to 122°F (>40° to 50°C)..........+/- 4°F (+/- 2°C)

    Outdoor Measurement Accuracy:
       Range: -40° to 32°F (-40° to <0°C)............+/- 4°F (+/- 2°C)
       Range: 32° to 104°F (0° to 40°C)..............+/- 2°F (+/- 1°C)
       Range: >104° to 122°F (>40° to 50°C)..........+/- 4°F (+/- 2°C)
       Range: >122° to 140°F (>50° to 60°C)..........+/- 6°F (+/- 3°C)

    Resolution (indoor and outdoor).............0.2°F (0.1 °C) typical
    Sampling Cycle (indoor and Outdoor).....................10 seconds

    RELATIVE I-IUMIDITY
    ================================
    Measuring Range........................................10 to 97%RH

    Accuracy: (at temp range 15°C to 40°C)
       Indoor Range: 25 to 90%RH - 25 to 40%RH................+/- 7%RH
                     40 to 80%RH..............................+/- 5%RH
                     80 to 90%RH..............................+/- 7%RH
       Outdoor Range: 25 to 90%RH - 25 to 40%RH...............+/- 8%RH
                     40 to 80%RH..............................+/- 6%RH
                     80 to 90%RH..............................+/- 8%RH
    Resolution (indoor and Outdoor)...............................1%RH
    Sampling Cycle (Indoor and Outdoor).....................10 seconds

    DEW POINT TEMPERATURE
    ================================
    Measuring Range Indoor....................32° to 117°F (0° to 47°C)
                    Outdoor....................32° to 133°F(0° to 56°C)

    Measurement Accuracy (Indoor and Outdoor):
       Condition: 25-90% RH..........................+/- 18°F (+/- 9°C)
       Condition: 32° to 104°F (0° to 40°C)

    Resolution (indoor and Outdoor)...........................2°F (l°C)
    Sampling Cycle (Indoor and Outdoor)......................10 seconds

    BAROMETRIC PRESSURE/TREND
    ================================
    Measuring Range................23.48 to 31.01 inHg (795 to 1050 mb)
    Accuracy............(at temp 32° to 122°F) +/- 0.21 inHg (+/- 7 mb)
    Resolution.........................................0.03 inHg (1 mb)
    Pressure Sampling Cycle..................................15 minutes
    Trend Sampling Cycle.........................................1 hour

    WIND SPEED
    ================================
    Measuring Range........................0 to 125.3 mph (0 to 56 m/s)
    Measurement Accuracy:
       at Temperature: -4°F to 140°F (-20° to 60°C)
       i)  Range: 2 to < 10 m/s...............................+/- 1 m/s
       ii) Range: 10 to 56 m/s..................................+/- 10%
    Resolution...............................0.2 m/s (0.4 mph)(typical)
    Sampling Cycte............................Gust Wind Mode: 5 seconds
                                           Average Wind Mode:  1 minute

    WIND DIRECTION
    ================================
    Measuring Range................................0° to 359° (Degrees)
    				      0° to 350° (Compass Direction)
    Digital Measurement Accuracy:
       Range: 0° to 347°...............................+/- 8° (Degrees)
       Range: <0° or >347°............................+/- 18° (Degrees)
       Resolution..........................................1° (typical)
    Graphical Measurement accuray:
       Range: 0° to 340°........................................+/- 10°
       Range: >340°.............................................+/- 20°
    Resolution......................................................10°
    Sampling Cycle (Degrees and Compass Direction)............5 seconds

    WIND CHILL TEMPERATURE
    ================================
    Measuring Range.......................-121° to 140°F (-85° to 60°C)
    Accuracy:
       (at temp -20°C to 60°C wind speed 2 to 56 m/s)+/- 16°F (+/- 8°C)
    Resolution................................................2°F (1°C)
    Sampling Cycle............................................5 seconds

    RAINFALL
    ================================
    Daily and Cumulative Measuring Range.....0 to 393.7in (0 to 9999 mm)
    Rainfall Rate Measuring Range.........0 to 39.32in/h (0 to 998 mm/h)
    Daily Rainfall Accuracy: (at 33.8°C to 140°C)
       Range: <.6 in (15 mm)................+/- .04in (1 mm) +/- 1 digit
       Range: .6 to 394 in (15 to 9999 mm)..........--+/- 5% +/- 1 digit
    Cumulative Rainfall Accuracy: (at 33.8°F to 140°C)
       Range: <.8 in (20 mm)...............+/- .04 in (1 mm) +/- 1 digit
       Range: .8 to 394 in (20 to 9999 mm)...........+/- .5% +/- 1 digit

    Rainfall Rate AccUracy:
       Range: <0.6 in/hr (15 mm/h)........+/- .04 in (+/- 1 mm) + 1 unit
       Range: 0.6 to 39.32 in/h (15 to 998 mm/hr)........+/- 7% + 1 unit
    Daily and Cumulative Resolution.....................0.04 inch (1 mm)
    Rainfall Rate Resolution.....................0.04m/h (lmm/h) typical
    Daily rain Sampling Cycle...................................24 hours

    Rainfall Rate Sampling Cycle......Varies Based on Rainfall Frequency
    Cumulative rain Sampling Cycle....Varies Based on Rainfall Frequency

    GENERAL
    ================================
    Display.........................................Liquid Crystal (LCD)
    Clock Accuracy...................................+/- 0.5 Seconds/Day
    Power Requirement.............................................12V DC
    Battery Life (Alkaline)...............................About 36 Hours
    Display Unit Dimensions (HWD).............4 1/4 x 7 x 1 11/16 inches
                                                   (108 x 178 x 43.5 mm)
    Weight:
    Display Unit (without batteries).....................10.6 oz (300 g)
    8-Way Connection Cable................................3.5 oz (100 g)
    Connection Box.........................................1.4 oz (40 g)
    Rain Gauge (with cable and screens)...................10.2 oz (290g)
    Anemometer (with cable, u-bolts, and nuts)...........19.4 oz (550 g)
    Thermo-Hygro Sensor (with cable).....................10.6 oz (300 g)

    Specifications are typical, individual units might vary.
    Specifications are subject to change and improvement without notice.
