- Powersupply RM-ITALY SPS 1050 -


With the linear amplifier 'SOMMERKAMP SLA-300' i'm using a switched power supply from RM-Italy. The model SPS 1050 gives up to 55 Ampere peek current and 50 Ampere continuos load.

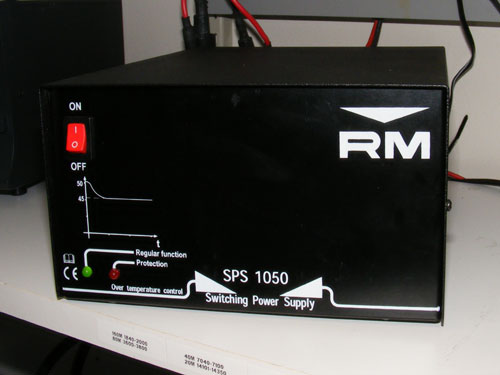

Power sypply - RM-Italy SPS 1050

- Technical data -
FACTORY SPECIFICATIONS
========================================
Supply ............... 230/240 or 110 Vca
Input energy/power ... 980 VA
Fuse ................. (230V) 5 A
Output Voltage ....... 13,5 ± 0,5 V
Max load ............. 55 A
Continuos load ....... 50 A
Ripple ............... 50 mV
Size ................. 185x113x274
Weight	............... 2,85 Kg
protection ........... Output short circuit
                       Over output voltage

Automatic forced ventilation

Manufactory .......... RM ITALY Costruzioni Elettroniche Snc
                       Via IV Novembre 42
                       40045 Ponte della venturina (BO) - Italy
                       Phone: 0534/60460 Fax: 0534/60463
                       http://www.rmitaly.com
- Documentation -
  • User Manual (In 250Kb Large .pdf file
  • Schematics (In 454Kb Large .pdf file
