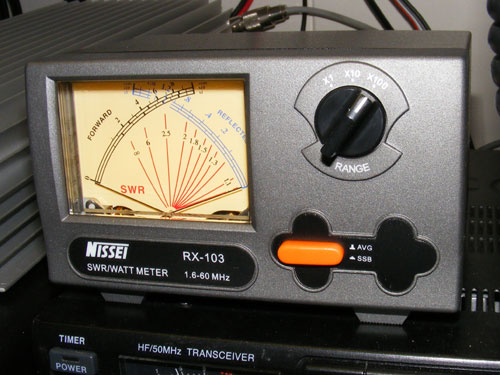

- SWR/WATT Meter NISSEI RX-103 -
2009.10.11 This is an 'No Fuzz and fancy Free' device and It does the jobb. Using it to monitor output from ICOM IC-756proIII radio / Input to my SOMMERKAMP SLA300 Linear amplifier.





- Documentation -
  • User Manual Nissei RX-103

    - Technical data -
    FACTORY SPECIFICATIONS
    ========================================
    Frequency ........... 1,6-60MHz
    MAX POWER ........... 10/100/1000W
    Accuracy ............ +/-10%
    SWR-sensivity ....... 1 W
    Impedans ............ 50 Ohm

    General:
    Dimensions .......... 140 x 84 x 122 mm
    Weight .............. 0,8Kg

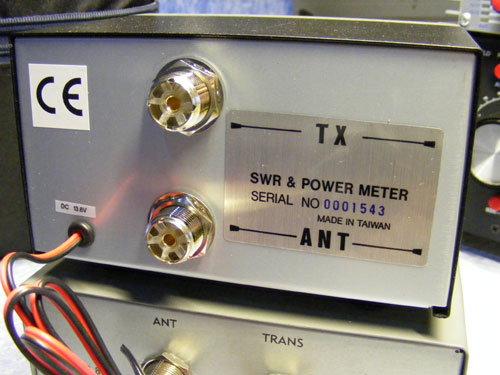

    Connector(s) ........ 2x SO-239
    DC supply ........... 13,8V DC (scale ilumination)

    Manufactory ......... Taiwan Nissei Sokki Co
                          No. 2, Lane 21, Cheng Kung Rd
                          Panchiao City, Taipei Hsien,Taiwan, R.O.C.
