- AMERITRON RCS-4 Remote Coax Switch -

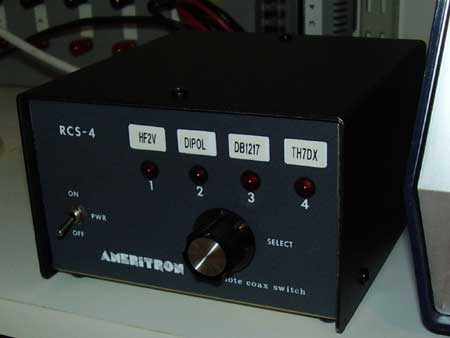

Controle unit


Relay unit

- Documentation -

Complete Users manual (In 37Kb .pdf file)

- Technical data -

FACTORY SPECIFICATIONS
========================================
Frequenzy ................ 1.8-30MHz
Maximun Power ............ 1500W
Impedance ................ 50ohm
Antenna select time ...... 0ms
Number of positions ...... 4
Loss at 30MHz ............ Less than .05dB
VSWR ..................... 1.1:1 from 1.8 to 30 MHz
Connectors ............... SO-239

Controle unit
Dimensions ............... 6 1/8"D x 5 1/4"W x 3 3/8" H
Weight ................... Kg

Relay unit
Dimensions ............... 5 3/8"D x 7"W x 3"H
Weight ................... Kg

Manufactory .............. AMERITRON Inc.
