SM2YER Goran's Homepage

- ZETAGI TRANSMATCH mod. HP 1000 -

Used the 'ZETAGI TRANSMATCH mod. HP 1000' on freeband from about 1993 to arround 1999. Used it to tune 3--5 element DIY YAGI-Beam's.

MyShack in 1995 and 1998

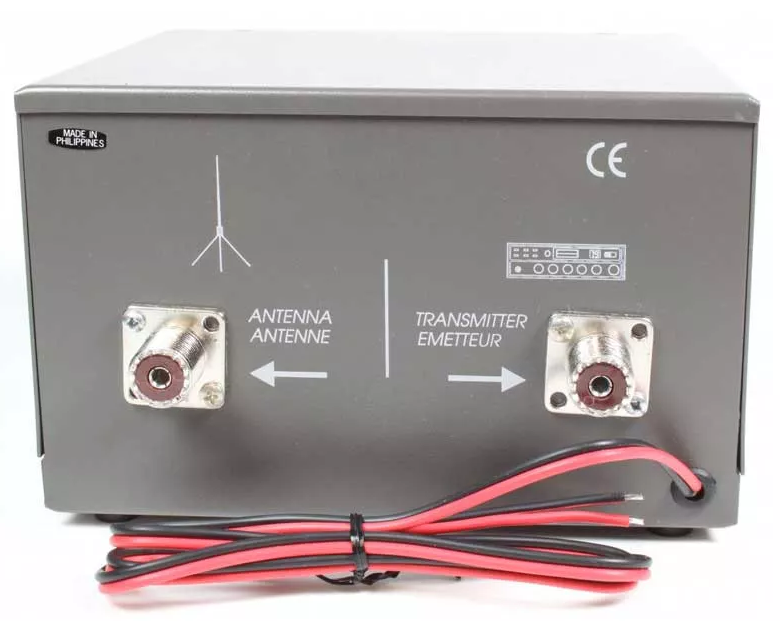

ZETAGI TRANSMATCH mod. HP 1000 (Lånade bilder!)

- Documentation -

Complete Instructions manual (In 440Kb Large .pdf image file)

- Technical data -

FACTORY SPECIFICATIONS
========================================
Frequency range......... 26--28MHz
Insertion loss ......... 0,2dB
Max power handeling .... 500 W/AM, 1000 W/SSB(PEP)
SWR Meter accuracy ..... 10%
Dimensions ............. 170 x 170 x 115 mm
Weight ................. 1,4 Kg
