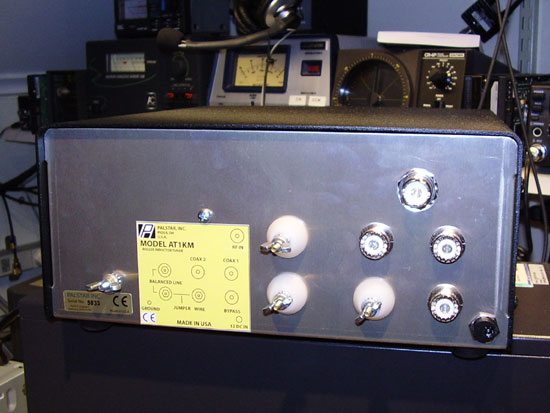

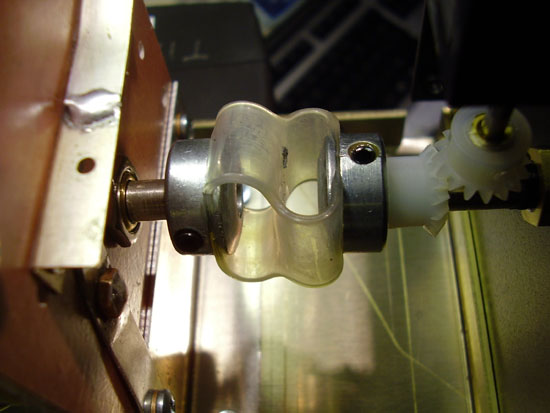

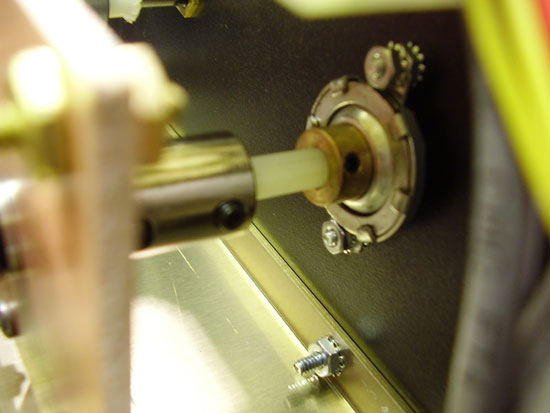

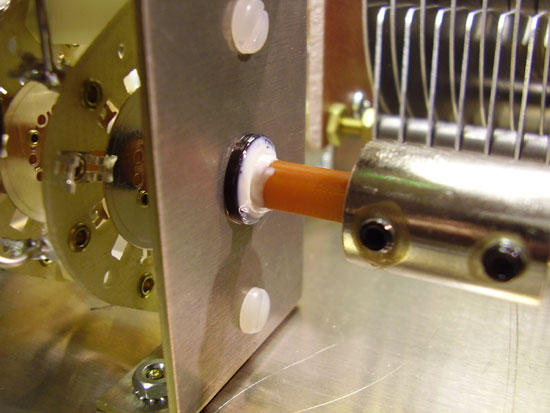

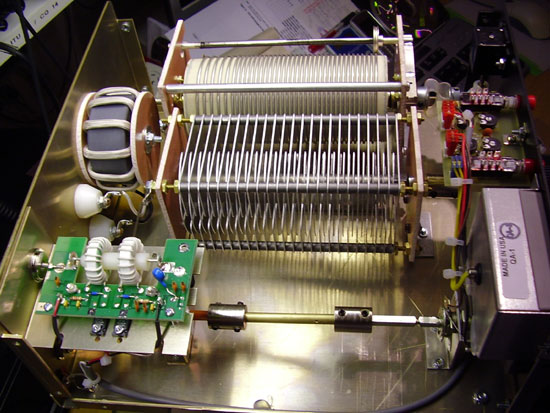

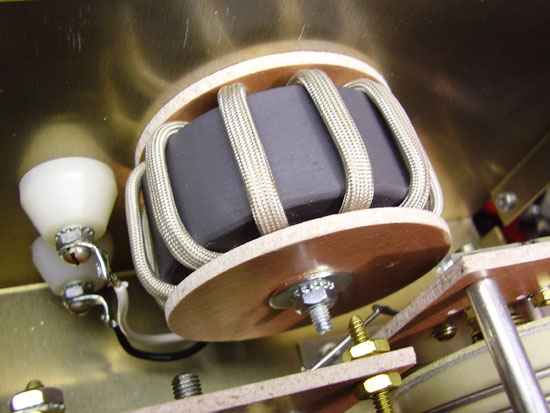

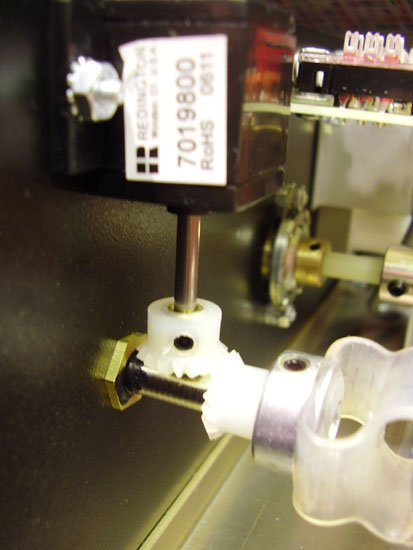

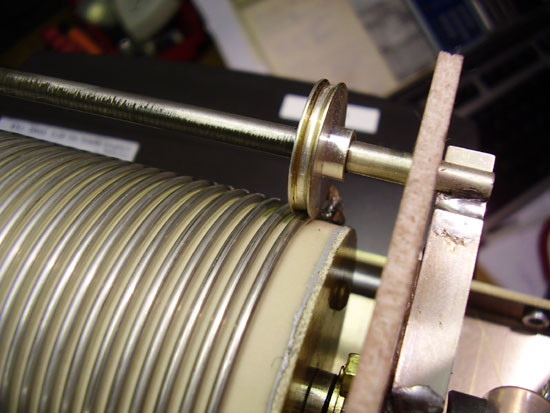

![]() - External antenna tuner PALSTAR AT1KM - SOLD! 2007.10.25 This fine tuner is now sold! 2007.03.05 First look. Bought this unit New from AFR in Sundsvall, Sweden. I read a lot of reviews on www.eham.com before i desided for this one. ![]() Front panel ![]() Rear panel - Documentation - Complete user manual (in 11.8Mb Hi-Resolution .pdf file) - Technical data - FACTORY SPECIFICATIONS ======================================== # Power rating 1200 watts pep # 160m to 20m(1200+/-j1200), 10m to 15m (1000+/-j1000) # Output to both balanced and unbalanced lines # Impedance matching range 20 ohms to 1200 ohms # Easy and quick tuning with only two controls # 6 position mode switch for multiple antennas # Crossneedle metering with backlighting (wall transformer supplied) # Meter power range 0-300 watts / 0-3000 watts # Differential capacitor tuning with 2 stators and 1 rotor (430pf - 19pf - 430pf@3.5kv) # Palstar designed ceramic body roller inductor # High power ferrite 4:1 balun # Crossneedle metering with backlighting (wall transformer supplied) # Powdercoated front panel and top cover # Dimensions: 10 1/2" wide x 4 1/2" high x 11"deep # Weight: 8 lbs Manufactory: Palstar, Inc. 9676 N. Looney Rd P.O. Box 1136 Piqua, Ohio, USA ![]() ...HIGH QUALITY ![]() Nice internal layout ![]() 1:4 balun closeup ![]() Coupler for swr/pwr meter ![]() Roler inductor closeup ![]() Inductor shaft isolation ![]() Capacitor shaft isolation and planet gear ![]() Antenna selector shaft isolation ![]() transmission gear for the inductor counter <-- Go Back! ![]() ©1999/2000/2001/2002 SM2YER Goran |
