- ASUS eeeBox -
2008.11.28 - The main idéa to buy this tiny computer is to have a quiet, or even silent computer in my shack, this has always ben a dream. With todays energy prices the new computer is about to pay itself in about two years!

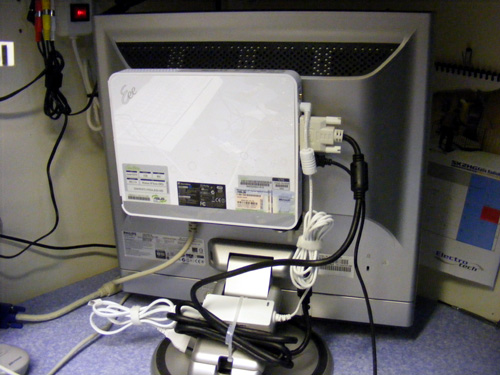

The eeeBox mounted on TFT-Monitors backside

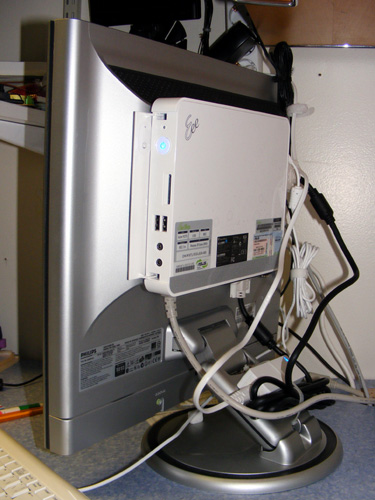

Image2...
- Energy consumption -
My old computer was running 24/7 all year around. The table show calculated power consumption with old computer.
Energy consumption - calculation
===================================================
OLD Computers power consumption ....... 158W
19" TFT-Monitor ....................... 48W
===================================================
Total 206W
Power consumption equals 0,206KW * 24h * 365days = 1804,60 KWh
|
New calculation
Since the wx-server project is moved inside a LINKSYS WRT54GL router running DD-WRT firmware and 'Digitemp' software. My computer does not need to run 24/7 365days/year any more. This means loots of energy saving!
In the new calculation i estimate the computer uptime to 4h / day 365days/year.
In the new calculation uptime for the LINKSYS WRT54GL router is 24/7 365days / year.
Energy Consumption - New calculation
===================================================
NEW Computers power consumption ....... 28W
19" TFT-Monitor ....................... 48W
===================================================
Total 76W
Power consumption equals 0,076KW * 4h * 365days = 111 KWh
NEW LINKSYS WX-Sulotion ............... 6W
===================================================
Total 6W
Power consumption equals 0,006KW * 24h * 365days = 52,5 KWh
Total Power consumption = 163,5 KWh
|
- Old Cost -
My old computer was running 24h / day all year around, Total cost = 1804,60 x 1,32 Skr** - equals 2382 Skr** each year. ($US 294)**
- New Cost -
My new computer is now running only 4h / day all year around and my new LINKSYS WX-sulotion is running 24h / day al year around. Total cost = 163,5 x 1,32 Skr** - equals 215,80 Skr** each year. ($US 26,6)**
**Note 8,10 Skr (Swedish krona) equals 1 $US (Today 28.11.2008)
- Technical data -
tekniska data
==============================
Processortyp ............. Intel Atom
Model number ........... N270
Part number ............ AU80586GE025D
Data width ............. 32 bit
Number of cores ........ 1
Level 1 cache size ..... 32 KB instruction cache
24 KB write-back data cache
Level 2 cache size ..... 512 KB 8-way set associative
Chipset .................. Intel 945GSE, Intel ICH7M
Processorhastighet ....... 1.6 GHz
Minnestyp ................ DDR II SDRAM - 533MHz - PC2-4200
Minne som ingår .......... 1 GB (2 x 512 MB)
Maximalt minne ........... Ingen information
Minnnesplatser (Lediga) .. 2
Hårddiskstorlek .......... 160 GB 5400 RPM
Hårddisktyp .............. Serial-ATA
Grafikkort ............... Intel UMA
Optisk enhet ............. Nej
Modulplats ............... Nej
Antal Seriella portar .... Nej
Antal Parallella portar .. Nej
Antal USB portar ......... 2 st på fronten
2st på bakpanelen
Antal Firewire portar .... Nej
Antal eSATA portar ....... Nej
Skärmanslutningar ........ 1 x DVI
Expansionskort ........... Nej
Minneskortläsare ......... Ja, läser MMC, SD, SD HC, MS, MS Pro
TV-utgång ................ Nej
Ljud ..................... Ja
Modem .................... Nej
Infraröd ................. Nej
Bluetooth ................ Nej
Nätverk .................. 10/100 Mbps & WiFi 802.11b/g
Dockningsmöjlighet ....... Nej
Operativsystem ........... Microsoft Windows XP Home
Dimensioner (BxDxH) ...... 223 x 178 x 27.4mm (inkl. stativ)
Vikt ..................... 1.3Kg
Power consumption ........ 28W (12VDC)
Garanti .................. 2 år
http://www.asus.com/
|
- Software -
The following software is currently running on my ASUS eeeBox
Operating system ..... WindowsXP home edition SP3
Read more...
I done some previous experiments with silent computers...
