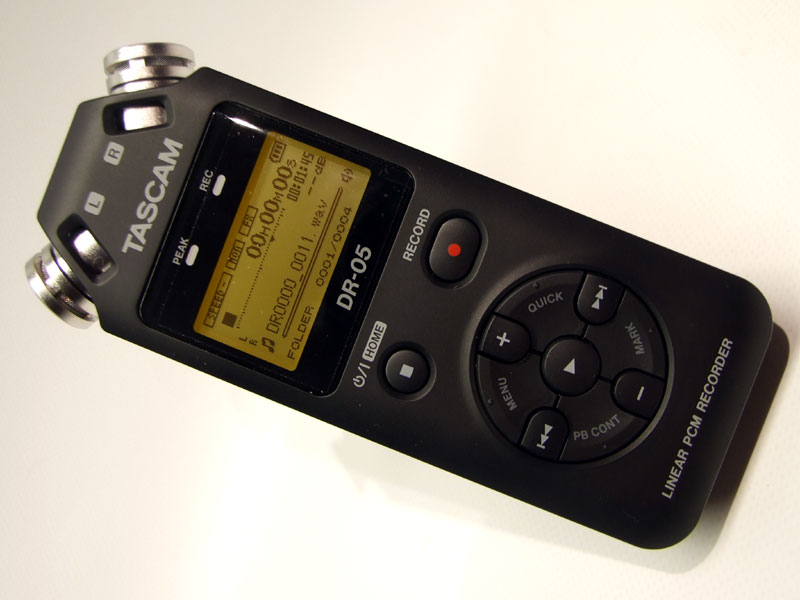

Tekniska data 'TASCAM DR05'
=====================================================================
Typ ............................... Digital inspelare
Recording media ................... microSD card (64MB to 2GB)
microSDHC card (4GB to 32GB)
File system ....................... FAT16/32
File format ....................... WAV(BWF), MP3
WAV/BWF
Sampling frequency ................ 44.1kHz/48kHz/96kHz
Quantization bit rate ............. 16/24bit
MP3
Sampling frequency ................ 44.1kHz/48kHz
Bit-rate for recording ............ 32/64/96/128/192/256/320kbps
Playback bit rate ................. 32 to 320kbps, VBR, ID3 tag Ver. 2.4
Number of channels ................ 2-channel(Stereo)
Playback speed control (VSA) ...... 0.5 to 1.5 times (in 0.1 increments)
*44.1/48kHz only
Built-in microphone ............... Omnidirectional, stereo
MIC/EXT IN
Connector ......................... 3.5mm (1/8") stereo mini jack,
Unbalanced, Plug-in power
Input Impendance .................. 25kΩ
Nominal Input Level ............... -20dBV
Maximum Input Level ............... -4dBV
PHONES/LINE OUT
Connector ......................... 3.5mm (1/8") stereo mini jack, Unbalanced
LINE
Output Impendance ................. 12Ω
Nominal Output Level .............. -14dBV(10kΩ load)
Maximum Output Level .............. +2dBV(10kΩ load)
PHONES
Maximum Output .................... 20mW + 20mW(32Ω load)
Built-in speakers ................. 0.3W, Mono
Low-cut filter .................... 40Hz/80Hz/120Hz
USB
Connector ......................... Mini-B type
Format ............................ USB2.0 HIGH SPEED
Chromatic tuner ................... C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Tripod attachment screw-hole ...... 1/4 inch, Tripod attachment screw-hole
Power ............................. 2x AA batteries,
USB bus power ..................... 5V + AC100 to 240V (Optional AC adapter)
Power consumption ................. 1.7W (Max)
Battery operation time With alkaline batteries (EVOLTA) Approx. 17.5 hours
(WAV, 44.1kHz, 16bit, using built-in microphone, JEITA)
With Ni-MH batteries (eneloop) Approx. 15.5 hours
(WAV, 44.1kHz, 16bit, using built-in microphone, JEITA)
Dimensions ........................ 61(W)×141(H)×26(D)mm
2.4"(W)×5.55"(H)×1.02"(D)
Weight ............................ 116g / 0.25lb (Without battery)
Standard accessories: 2GB microSD card, USB connection cable, 2 AA batteries for
confirming operation, Owner's Manual, Warranty card
Audio performance
Frequency response 20Hz to 20kHz +1dB/-3dB (Fs 44.1kHz, EXT IN to LINE OUT, JEITA)
20Hz to 22kHz +1dB/-3dB (Fs 48kHz, EXT IN to LINE OUT, JEITA)
20Hz to 40kHz +1dB/-3dB (Fs 96kHz, EXT IN to LINE OUT, JEITA)
Distortion 0.05% or lower (Fs 44.1k/4k8/96kHz, EXT IN to LINE OUT, JEITA)
S/N ratio 92dB or higher (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)
Computer compatibilty
Windows
OS Windows XP, Windows Vista, Windows 7, Windows 8
CPU type/speed Pentium 300MHz or faster
Memory 128MB or more
USB USB2.0
Macintosh
OS Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
OS X Mountain Lion(V10.8)
CPU type/speed Power PC, iMac, G3, G4, G5 266MHz or faster
Memory 64MB or more
USB USB2.0
=====================================================================
|
|
