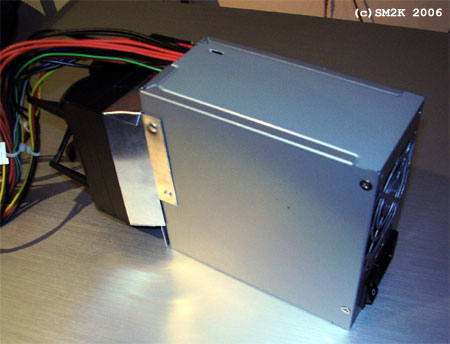

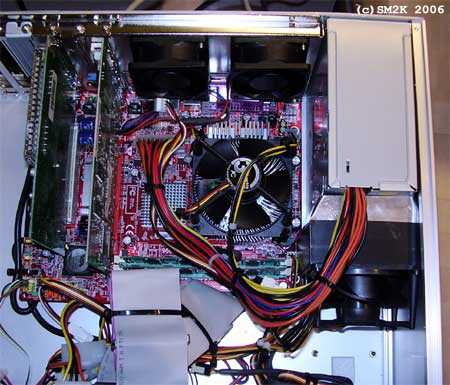

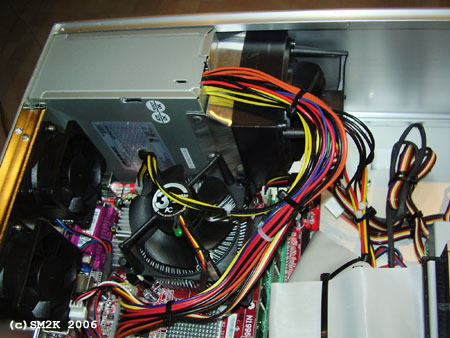

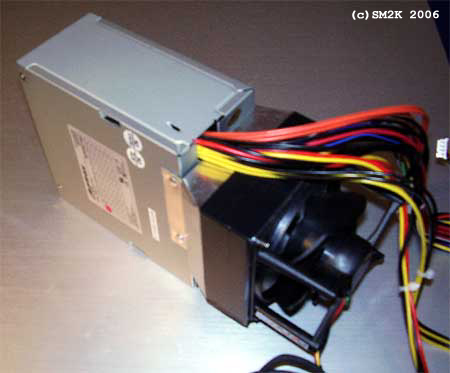

![]() - hardware - Images from the inside of the HTPC. To reduce noise i modified the AHANIX standard PSU with an external Arctic cooling 80x80 fan. I built an external fan holder / frame from 0.5mm aluminum, the holder also directs the air flow. Look at the images at the bottom of this page. ![]() First hardware setup This is the first hardware setup: Motherboard ............. ASUS a7v8x socketA CPU ..................... AMD Athlon XP2400+ @1665MHz Memory .................. 512 KVR DDR 333 (PC2700) Harddisk ................ 80GB ATA133 7200rpm Grafics ................. Radeon 9250 128Mb (Dvi/TV out) TV-Card ................. Avermedia A16A MCE DVB-T Digital TV-Card AHANIX D.VINE D5 HTPC Chassi A Standard IR-Remote keyboard with trackball ![]() Second hardware setup This is the second (current) hardware setup: Motherboard ............. MSI PM8M2 Socket775 CPU ..................... INTEL Celeron D320 @ 2.53GHz Memory .................. 512 KVR DDR 333 (PC2700) Harddisk ................ 80GB ATA133 7200rpm Grafics ................. Radeon 9250 128Mb (Dvi/TV out) TV-Card ................. Hauppauge Bt878 Analog-TV card AHANIX D.VINE D5 HTPC Chassi A Standard IR-Remote keyboard with trackball ![]() Modified PSU ![]() Modified PSU unmounted ![]() Modified PSU unmounted *** End of page *** <-- Go Back! ![]() |
