- Skystar 2 tv PCI -


The TechniSat 'Skystar 2' PCI card make it possible to build your own 'Dreambox'. With the card installed your able to receive digital TV- and radio programs via satellite, the card is also the best way for receiving of data services or "High speed internet via satellite".

With the included software your also ready for satellite-DX / DVB-service search. The software Setup4PC enable you to probe signals for digital data services and determine correct FEC Symbole rate a.s.o.

Note: Reception of data services requires a seperate client software normally given to you by the specific service providers themself.

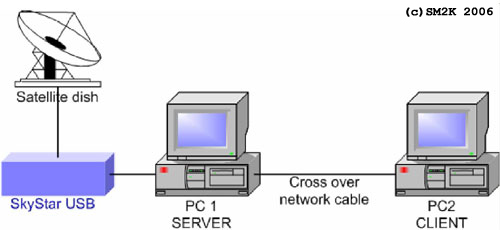

With the 'DVBViewer TE' software you can view satellite channels, and search, sort, even IP-Stream onto your LAN
Skystar 2 tv PCI
=================================
TechniSat offers the optimal Multimedia extension with the SkyStar 2 TV for your PC!

Equipment characteristics:
- Reception of digital DVB-S television-, radio channels and teletext.
- Reception of data services via satellite dish (Multicast/Unicast, MPE).
- Plug&Play.
- PCI card.
- DiSEqC 1.0.
- SCPC and MCPC.

Input Frequencies: 950 - 2.150 MHz

RF-level: -65 to -25 dBm

LNB support: 13V/18V, 350mA max.
- Experience -
The card is realy simple to get up an running, i downloaded the Free 'ProgDVB' and i did get it to work with driver update, one minor setback is that the card don't support my motor. The card only have DiSEqC 1.0 !!!

- Skystar 2 Documentation -
QUICK INSTALL_e.pdf
Users Guide -1- Installation.pdf
Users Guide -2- Setup4PC Server4PC Air.pdf
Users Guide -2- Setup4PC Server4PC Cable.pdf
Users Guide -2- Setup4PC Server4PC Sky.pdf
Users Guide -3- DVBViewerTE.pdf
HOWTO_IPSTREAMING_ENG_4.3.0.pdf
Users Guide -4- Troubleshooting.pdf
FAQ_DVB-PC_TV_ENG_4.3.0.pdf
