Focal 180cm parabolic dish with Polarmount / Motor

- Focal 180cm parabolic dish with Polarmount / Motor -

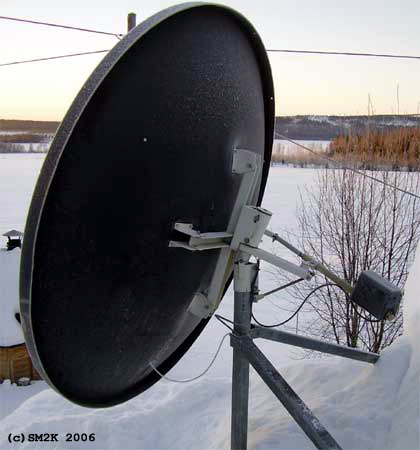

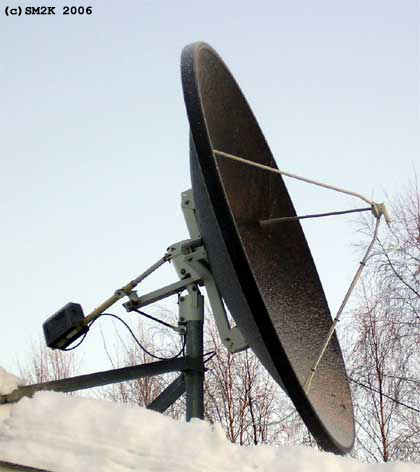

180cm 'PRESSCRAFT' FOCAL parabolic dish

TECHNICAL SPECIFICATION
=================================
Diameter

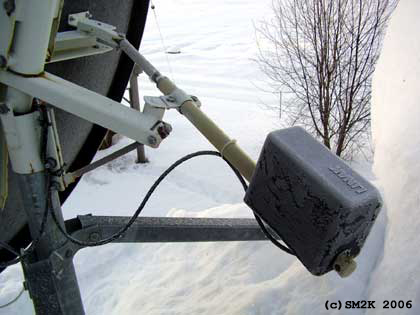

Polarmount / LINAK Motor

TECHNICAL SPECIFICATION
=================================
Diameter ....... 1.8 metert
F/D Ratio ...... 1 / 4

If you got some information about this
satellite dish please e-mail me.

- Motor control -

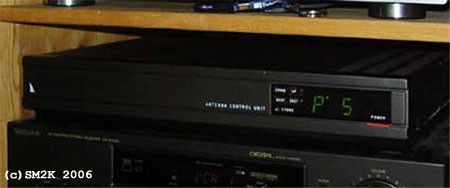

Motor control

TECHNICAL SPECIFICATION
=================================
Motor part:
Make ....................... LINAK
Model ......................
Output motor voltage ....... 33 V DC
Output motor current ....... 1.8 A continous / 3 A Max
Powersupply to pulse ....... 5 V DC 100 mA
Dignal from motor .......... Digital pulse, max 100 Hz

Processor part:
Make ....................... Luxor / Salora
Model ......................
Pulse counting register .... max 5994 pulses
Display pulse reading ...... 000-999
Stored positions ........... min 1 / max 40
Controls:
Stored positions up / down.
Antenna movement east / west.
Store function.

Motor control unit - Manual

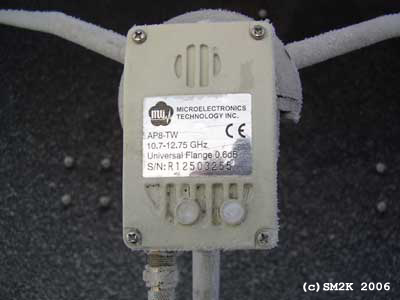

MTI AP8-TW 0,6db Focal LnB

TECHNICAL SPECIFICATION
=================================
Type: Universal Single Flange LNBF
F Output Range:
L: 950 ~ 1950MHz
H: 1100 ~ 2150MHz

RF Input Range:
L: 10.7 ~ 11.7GHz
H: 11.7 ~ 12.75GHz

LO:
L: 9.75GHz
H: 10.6GHz

Polarization: Linear

MTI AP8-TW - Specifications (In 45Kb .pdf file)
Product homepage - http://www.mti.com.tw
