- Offset parabolic dish with Polarmount / Motor -

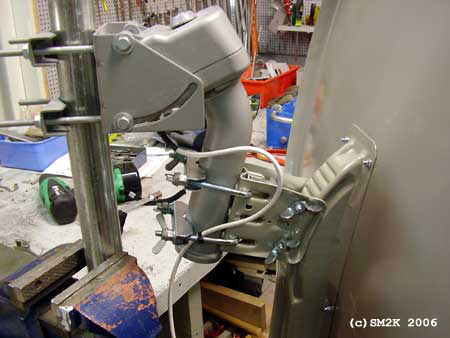

These images is taken indoors when i pre installed the motor and dish.

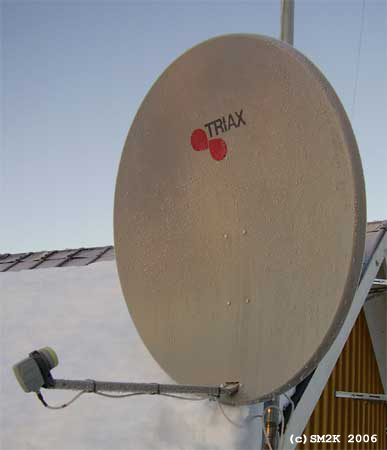

110cm 'TRIAX' TDS-110 Offset steel parabolic dish
TECHNICAL SPECIFICATION ================================= EAN-nummer ............... 5702661229015 Storlek .................. 100 x 105 cm Färg ..................... Grå [ral 7035] Frekvensområde ........... 10.7 - 12.75 GHz Förstärkning vid 11.7GHz . 40.2 dBi G/T LNB 0.7dB ............ 20.6 dB/K X polarisering ........... > 27 dB Offset vinkel ............ 26 Grader Elevations område ........ 10-50/45-80 Grader Reflektionstyp ........... Offset Öpningsvinkel ............ 1.8 Grader Vindlast @42m/s .......... 1222 N Material ................. Galvanised steel Färdig ................... Polyester powder coat LNB hållare .............. ø40 + ø25 Mast dimension ........... ø 32-60 mm Vägg beslag .............. - optional extra Standards ................ ETS 300784
'Superjack DG-120' DiSEqC 1.2 Polarmount/Motor
TECHNICAL SPECIFICATION
=================================
Protocol ................. DiSEqC 1.2
Compatible Receiver ...... DiSEqC 1.2 Receiver
Antenna Size ............. 120 cm Max.
Speed: 1.9° / sec (at 13V) 2.5° / sec (at 18V)
Azimuth Angle ............ 70° East ~ 70° West (140° Max.) Adjustable
Elevation Angle .......... 25-75°
Tube for Antenna ......... Ø 55 x 160 mm
Stand Size ............... Ø 35-Ø 65 mm
Input Voltage ............ 13 / 18Vdc
Output Voltage ........... 13 / 18Vdc (according to input)
Power Consumption ........ 50 mA (Standby) / 200mA (Normal) / 350mA (Max.)
Satellite Positions ...... 60 positions
Goto 0 Position Function . Yes (Goto O°)
Recalculation Function ... Yes
Manual Button ............ Yes
Indicating LED ........... Yes ( 2 Colors )
Limit Protection ......... 1. Adjustable Hardware Limits
2. Programmable Software Limit
3. Current Limit
Positioning Sensor ....... High Resolution Hall Effect Sensor
Connector ................ F-Type
Weight (Mount) ........... 3.1 Kg (Net) / 3.5 Kg (Gross)
Dimension (Mount) ........ 345 x 168 x 110 rnm~ (Gross)
- Polar mount Setup procedure -1. Make shure your mounting point, mast or other sutable pipe is in 100% verical level.
2. Mount motor bracket on to the motor unit, set elevation according to your actual Latitude.
3. Attach motor to your mounting point, mast or other sutable pipe. Pointing to the south.**
4. Mount parabola dish on the motor shaft, Center it for max elevation when directed to south.**
5. Adjust parabola dish angle approcimate 30° minus your previous azimuth angle.***
6. Run the motor to the nearest satellite position (east or west) to your position.****
7. Fine adjust (Rotate) the motor bracket to mast clamp to fit scale (Tuner reading)
(Calgulate differance, satellite potition to reading, run motor to accurate setting and then
Rotate the motor bracket to mast clamp back into position)
8. You might have to adjust azimuth angle after you find right east / west position.
9. Repeat procedure 7-8 if your not satisfied.
** Your compass south.
*** The angle used when your parabola dish was used without motor.
**** You do not need to recalculate, in relative position to earth orbit position at this time.

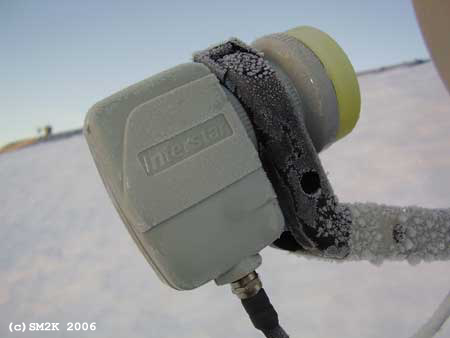

INTERSTAR 0,3db LnB
