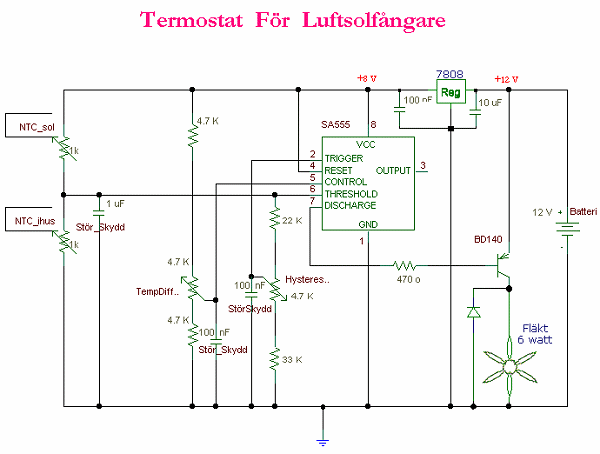

![]() - Differential termostat - 2009.04.05 Försök / beskrivning med differential termostat. Kretsen bygger på räknar ![]() Krets-schema Material / Komponenter ============================================== 2st Resistor 1/4W 4K7 1st Resistor 1/4W 33K 1st Resistor 1/4W 22K 1st Resistor 1/4W 470 3st Kondensator 100nF 1st Kondensator 1uF 1st Kondensator 10uF 1st Diod 1N4148 2st Trimpot PT15NV15 4K7 ELFA nr# 64-395-58 1st Regulator TS7808CI ELFA nr# 73-000-32 2st NTC resistor 1K ELFA nr# 60-259-69 1st Timerkrets SA555P DIL8 ELFA nr# 73-041-17 1st Transistor BD140 ELFA nr# 71-042-35 1st Tryckt kretskort ============================================== - Honors to the brains behind... - Som vanligt så har jag hittat det mesta här ute på internet. Här är några länkar till mina inspirations källor / Referens material: Go Back! ![]() ![]() ©1999-2006 SM2YER Goran |
